Biometric Digital Lock
iDLock Bio

iDLock Bio is the ideal digital lock to control access to the most diverse environments.

With a modern and compact design, it allows an easy and simple installation that adapts to different types of doors.

Its high-resolution biometric reader ensures fast and secure identification of fingerprints.

In addition, the device features a touch-sensitive keypad and Bluetooth connectivity that allows you to control, configure, view reports and customize access rules by cell phone, through the iDHome application.

  • High resolution capacitive biometric reader
  • Bluetooth connectivity for compatible Android and iPhone Touch sensitve keyboard
  • Mobile application

Access Control

  • Number of Users Capacity for up to 500 registeres users
  • Number of Fingerprints Capacity for up to 110 fingerprints
  • Number of Passwords Capacity for up to 500 passwords
  • Open door sensor Automatic locking when the door is closed
  • Burglary alarm Doorjamb detection with visual and audible warning
  • Visitor registration Possibility of local or remote registration


  • Bluetooth Bluetooth Low Energy 4.1 connection.
    Requires a compatible Android (8 or higher) or iPhone (iOS 11.0 or higher) with iDHome installed

Forms of Identification

  • Biometric Reader 500 DPI capacitive fingerprint reader
  • Bluetooth Door control over iDHome app on mobile device
  • Password User identification through numeric password

User Interface

  • Capacitive Keys 12 backlit capacitive keys
  • Mobile application Install iDHome by going to the installation page through QR Code on the box


  • Superposition Easy installation without the need to remove the current door lock mechanism
  • Versatility Compatible with doors from 15 to 50 mm thick

General Characteristics

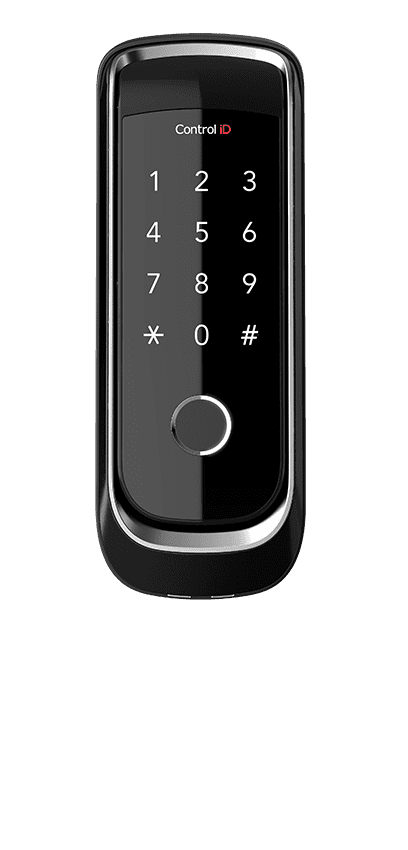

  • Overall dimensions 64 mm x 169 mm x 15 mm (W x H x D) - External unit

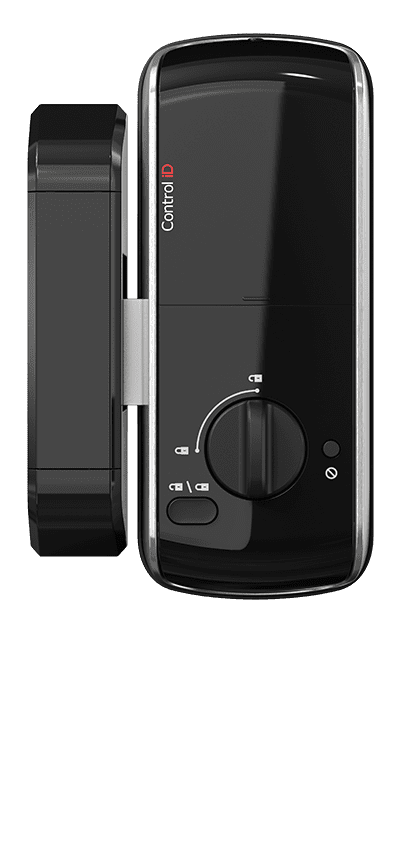

    73 mm x 175 mm x 43 mm (W x H x D) - Internal unit
    30 mm x 140 mm x 31 mm (W x H x D) - Doorjamb
  • Equipment weight 165g - Outdoor unit
    450g - Indoor unit
    75g - Doorjamb
  • Power supply 4 AA Alkaline batteries - 6 VDC
  • Contingency power supply 9V battery
  • Battery life 1 year (10 accesses per day)
  • Operating location Protected from rain and sun
  • Operating temperature 0 to 40°C
