Time Attendance
REP iDClass

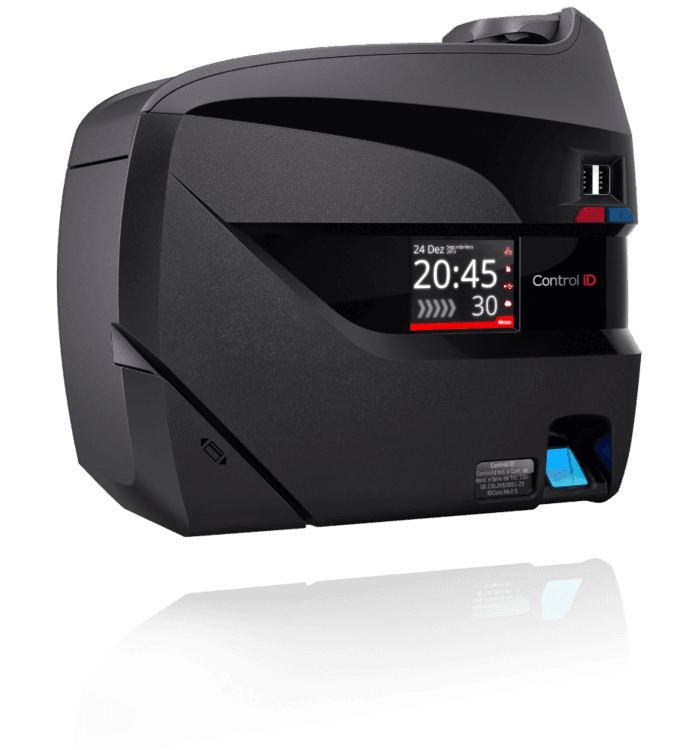

Control iD is revolutionizing the market for Electronic Time Attendance Recorders (REPs), by presenting the iDClass Time Attendance Device. In compliance with the requirements of Ordinance 1510/2009 and certified by Inmetro, the Control iD Time Attendance Machine is equipped with the most modern identification features, including the practical and safe fingerprint reading technology (biometrics).

In addition, its touch screen display provides a friendly and intuitive user interface. In addition, its innovative design, reduced size and robustness demonstrate the dedication and excellence with which Control iD designs its products, reaffirming its leadership in the segment.

  • Biometric identification, proximity card, barcodes and password.
  • High-speed and robust thermal printer mechanism with guillotine
  • Reel capacity for up to 400m (10,000+ tickets per reel)
  • TCP/IP communication, embedded web server and two USB ports. Optional Wi-Fi and GPRS
  • 2.4" touchscreen color display
  • Approved by the Ministry of Labor and Employment
  • Certified by Inmetro

Attendance Control

  • Certified by Inmetro Product certified by Inmetro - Certificate NCC 15.03813
  • Approved by Ordinance 1.510/2009 Approved by the Ministry of Labor and Employment
  • Quantity of Employees Capacity for 15.000 registered users
  • Quantity of Fingerprints Capacity for 15,000 fingerprints

Identification Technology

  • Biometric reader (MULT, BIO, BIO PROX AND BIO BARRAS) 500 DPI Optical Fingerprint Reader
  • Proximity Cards (MULT, BIO PROX AND PROX) Compatible with Mifare technology or 125kHz ASK
  • Barcode Cards (MULT, BIO BARS AND BARS) Barcode card reading (Code 39, 2 of 5 and Interleaved 2 of 5 )
  • Password (ALL MODELS) User identification through number passwords

Printer and Reel

  • Reel Compartment Reel capacity for up to 400m (10,000+ tickets per reel)
  • Printer Mechanism Seiko (Japan) high-quality printing mechanism
  • Automatic Ticket Cutting High speed guillotine printer
  • Print Speed Print speed 100 mm/s
  • Detecting the Remaining Paper Amount Enables remote paper level monitoring


  • iDCloud Automatic sync with cloud (sold separately)
  • USB 1 USB 2.0 Host port (Fiscal Port) for File Data Inspection (AFD)
    1 USB 2.0 Host port for importing and exporting users and AFD receipts
  • Ethernet 1 native 10/100Mbps Ethernet port
  • GPRSOptional GPRS connection module
  • Wi-FiOptional Wi-Fi connection module

User Interface

  • LCD Touchscreen2.4" 320x240 Color TFT LCD Display with a Resistive Touchscreen

General Features

  • Overall Dimensions (W x H x D) 246 mm x 246 mm x 104 mm (including lower support)
    246 mm x 230 mm x 104 mm (without support)
  • Equipment weight 750g (without reel)
  • Packaged weight 1kg
  • Warranty1 year
  • Equipment colorTextured black
  • Power 110-220V (Bi-Volt) / 60Hz
  • UPS (optional)Internal UPS for up to 4h

Interconnection diagram

Installation diagram for time attendance device iDClass
