Access Control

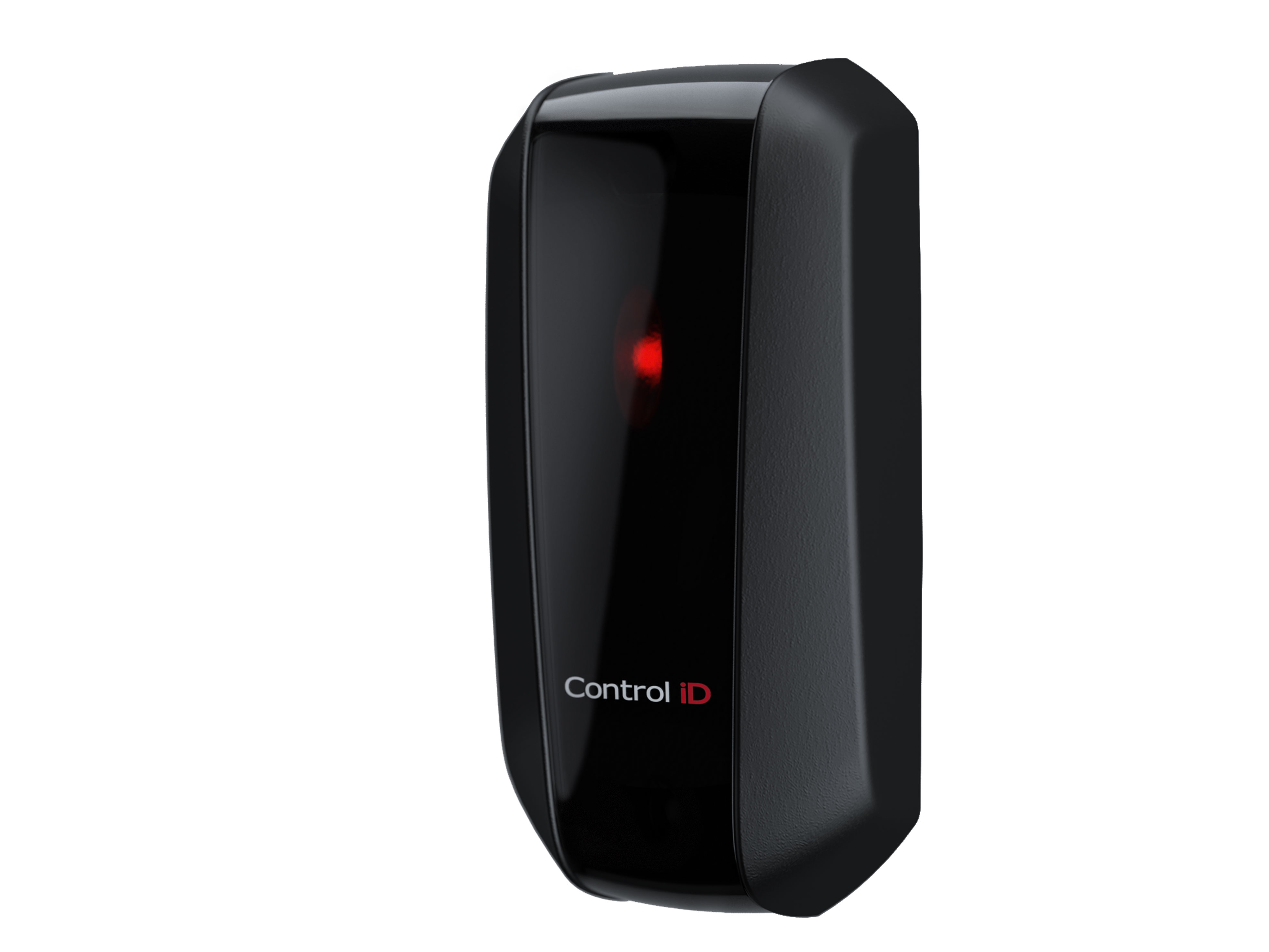

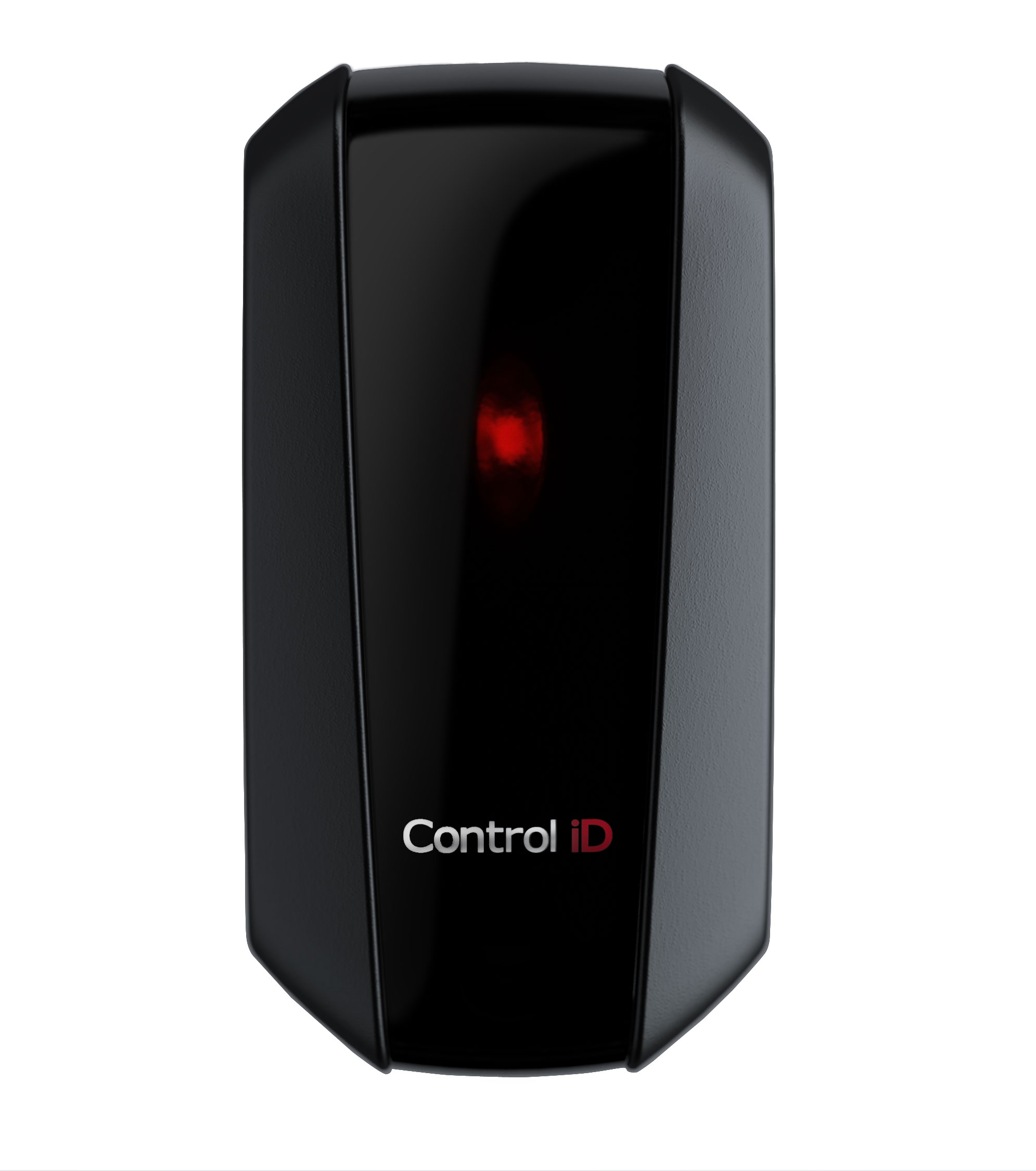

iDProx Slim

With modern design and high-performance embedded electronics, the iDProx family of proximity card readers is compatible with leading access control technologies in the market. Its excellent reading range and fast response makes it ideal for different environments.

It is easy to install and can be integrated with any existing access controllers through the multiple communication protocols.

  • Mifare and 125kHz card reading
  • Selectable Wiegand or ABATRACK outputs
  • Easy installation
  • Audiovisual signage after reading the card
  • Modern and innovative design

Identification Technology

  • Proximity Cards MIFARE™ or 125kHz technologies (including ASK, FSK and PSK)
  • Range ASK: 15cm, FSK 10cm, PSK: 10cm MIFARE™: 6cm

Communication

  • Wiegand Output 1 native Wiegand port (can be configured for ABATRACK II)
  • Salida Serial TTL 1 serial port (RS-232) TTL shared logic level
  • LED Internal equipment LED control input
  • Beeper Internal equipment Buzzer control input

User Interface

  • LED Red, green and yellow LEDs
  • Buzzer 4kHz and 70dbA @ 100mm Buzzer

General Features

  • Dimensions 20mm x 95mm x 51mm (W x H x D)
  • Equipment weight 200g
  • Packaged weight 400g
  • PowerExternal 12V source (not included)
  • Consumption 1,2W (100mA) nominal
  • Ingress Protection Rating IP65

Interconnection Diagram

Interconnection Diagram
