Access Control

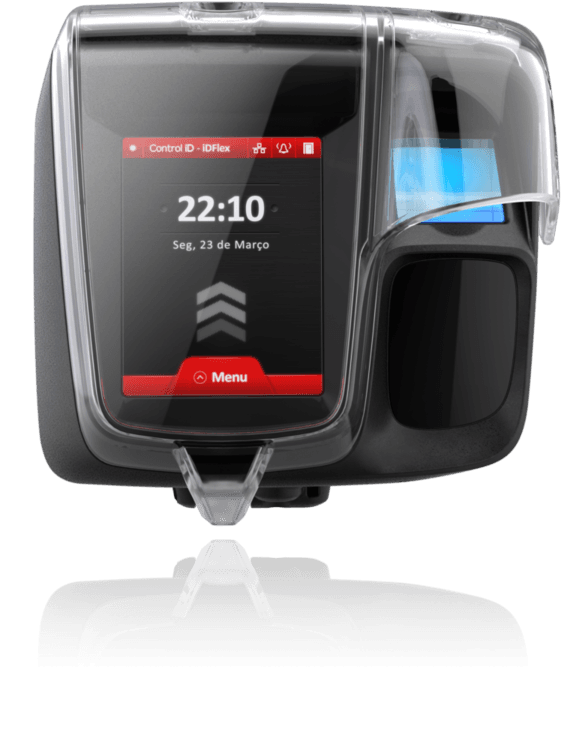

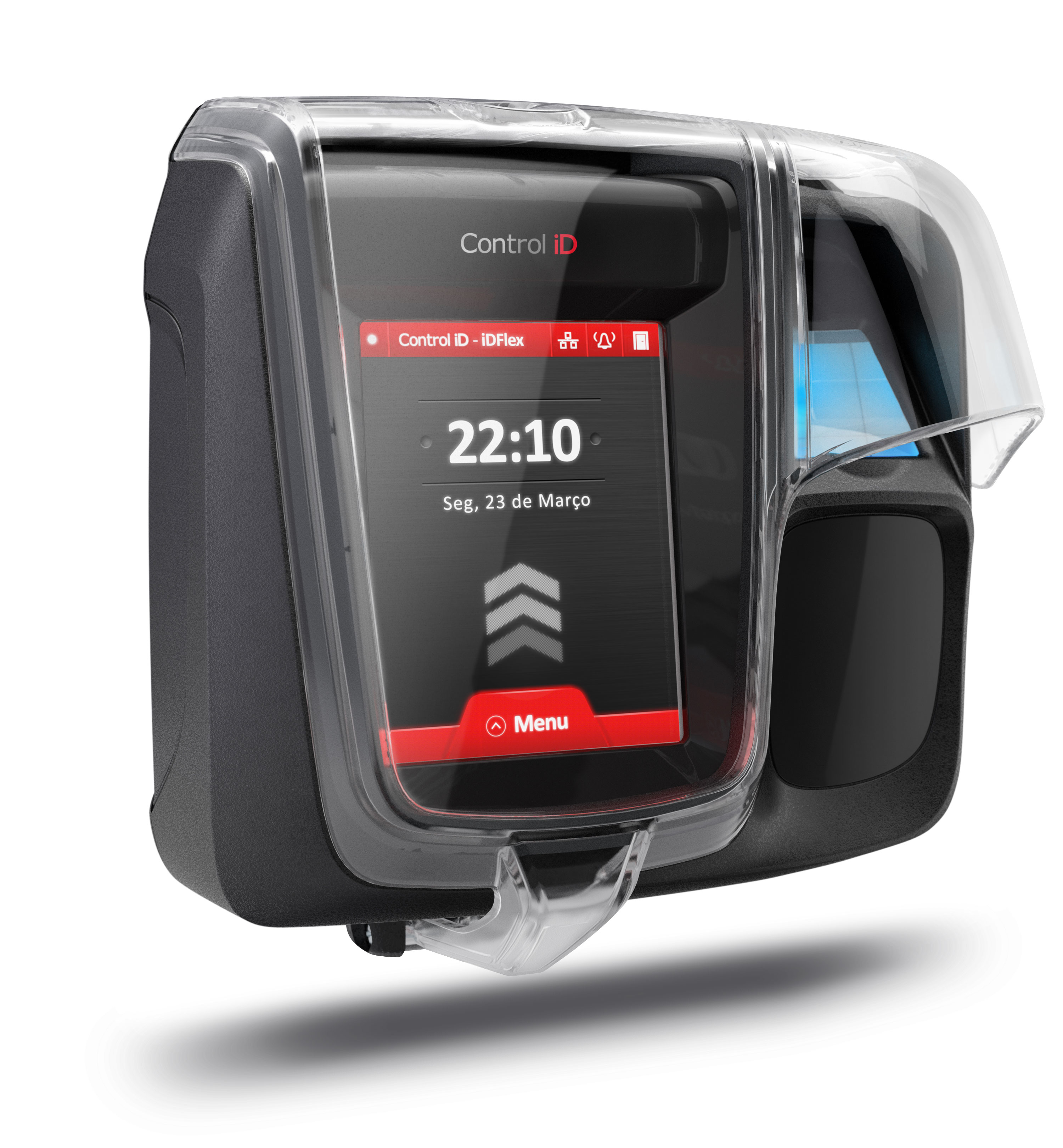

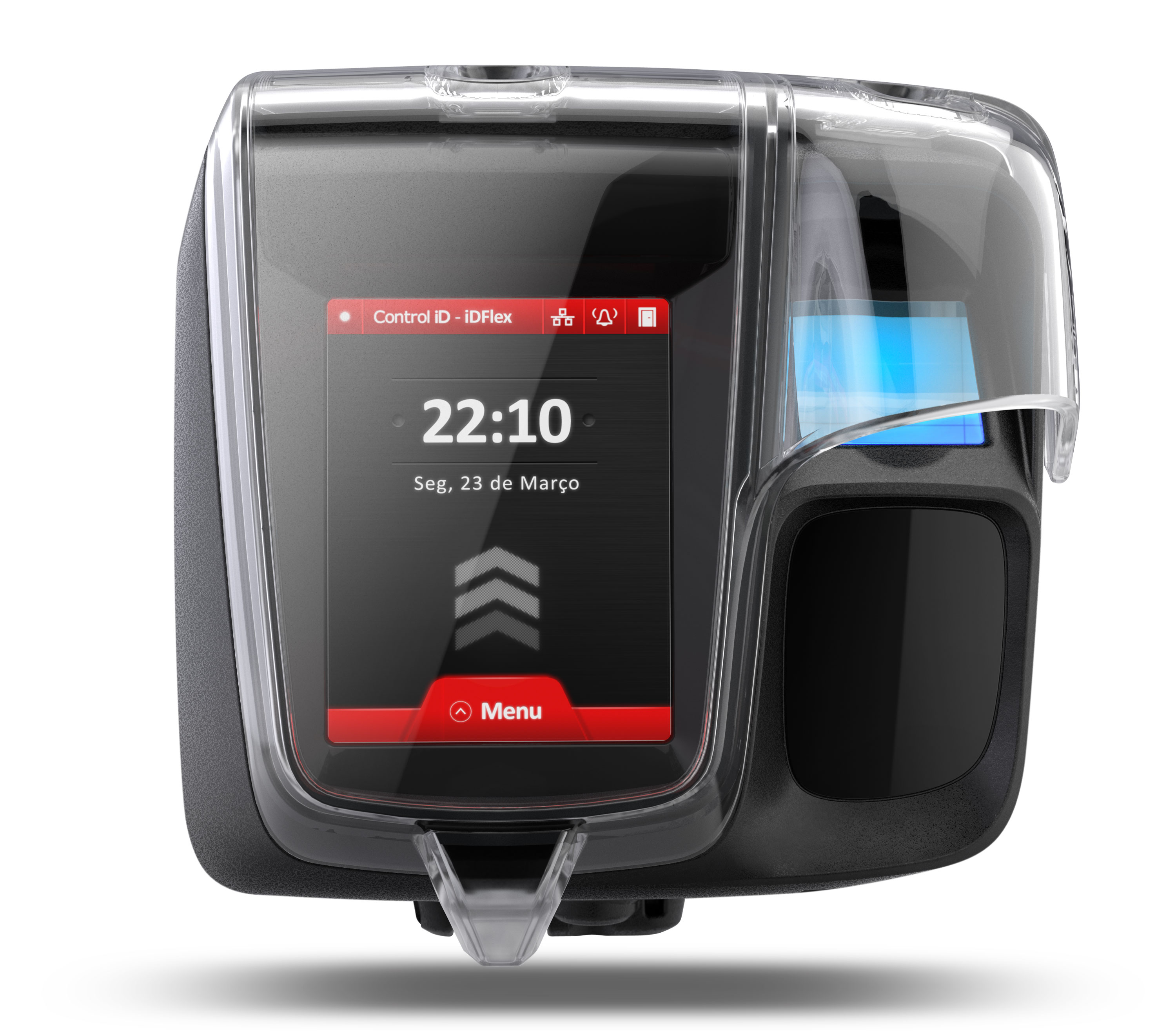

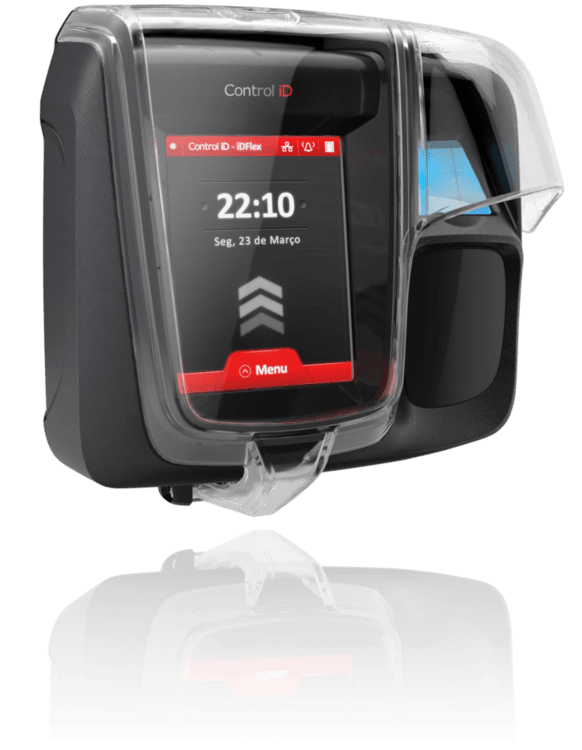

iDFlex IP65

The iDFlex IP65 access controller is designed for use in environments that offer moisture or dust risks. It enables controlling up to 200 thousand users authenticated by card or six thousand fingerprints. It can also store personal passwords for identification.

The iDFlex IP65 also has integrated web software for managing access control. Due to all these advantages, it offers the best cost-benefit in the market.

  • Display touchscreen
  • Customized access rules by groups and schedules
  • Biometric identification, proximity card, barcodes and password
  • External drive module with relay
  • Best cost-benefit in the market

Access Control

  • Number of users Capacity for more than 200,000 users
  • Quantity of Fingerprints Capacity for more than 6,000 fingerprints in stand alone mode
  • Access rules Access rules according to schedules and departments
  • Access Records Capacity for more than 200,000 records
  • iDCloud Monitoring, synchronization, and backup services on the cloud (optional)
  • Door controlSafely controls one door
  • Sensors and Buttons1 push button input
    1 input for the opening sensor
  • Output relays1 internal relay in the drive module with up to 220VAC/5A
  • Wiegand Inputs 1 native Wiegand port
  • Wiegand Outputs 1 native Wiegand port

    IP65 Protection

  • Equipped with special protection against water and dust

Communication

  • Ethernet 1 native 10/100Mbps Ethernet port
  • USB 1 USB 2.0 Host Port
  • RS-485 1 RS-485 port for communication between the external access control module and terminal
  • GPRS GPRS connection module (optional)
  • Wi-Fi Wi-Fi connection module (optional)

Identification Technology

  • Biometric Reader 500 DPI Optical Fingerprint Reader
  • Proximity Cards MIFARE™ or 125kHz technologies (including ASK, FSK and PSK)
  • Password User identification using number password

User Interface

  • LCD Touchscreen 2.4" 320x240 Color TFT LCD Display with a Resistive Touchscreen
  • Integrated Webserver Complete management software for access control via browser Embedded Access Management Software Embedded Access Management Software

General Features

  • Dimensions 100mm x 95mm x 36mm (L x W x D) - Terminal
    52mm x 52mm x 22mm (L x W x H) - drive module
  • Equipment weight 212g - Terminal
    34g - Drive Module 263g - Packaged Weight
  • Packaged weight 263g
  • PowerExternal 12V source (not included)
  • Consumption 2,4W (200mA) nominal

Interconnection Diagram

Interconnection Diagram
