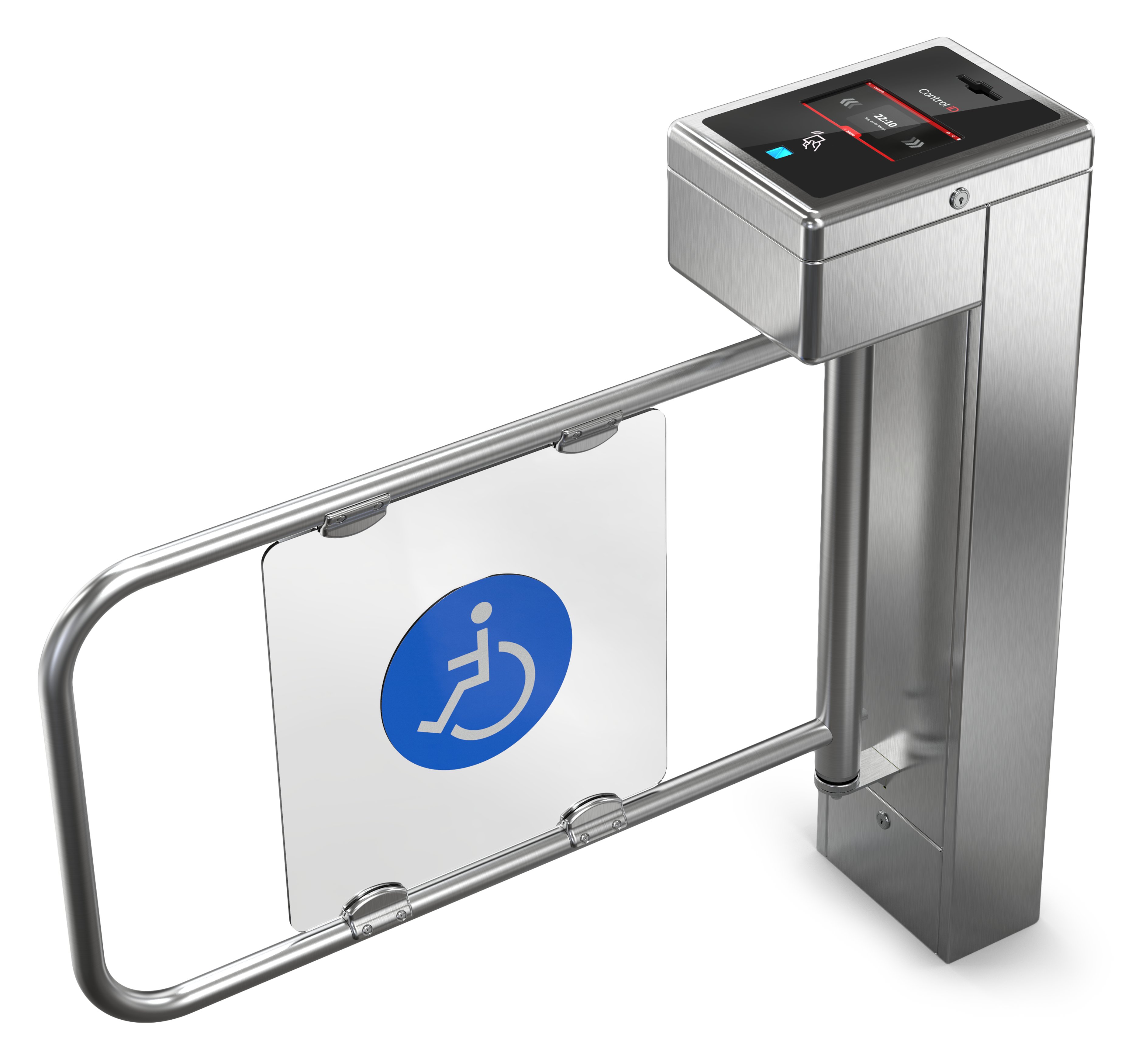

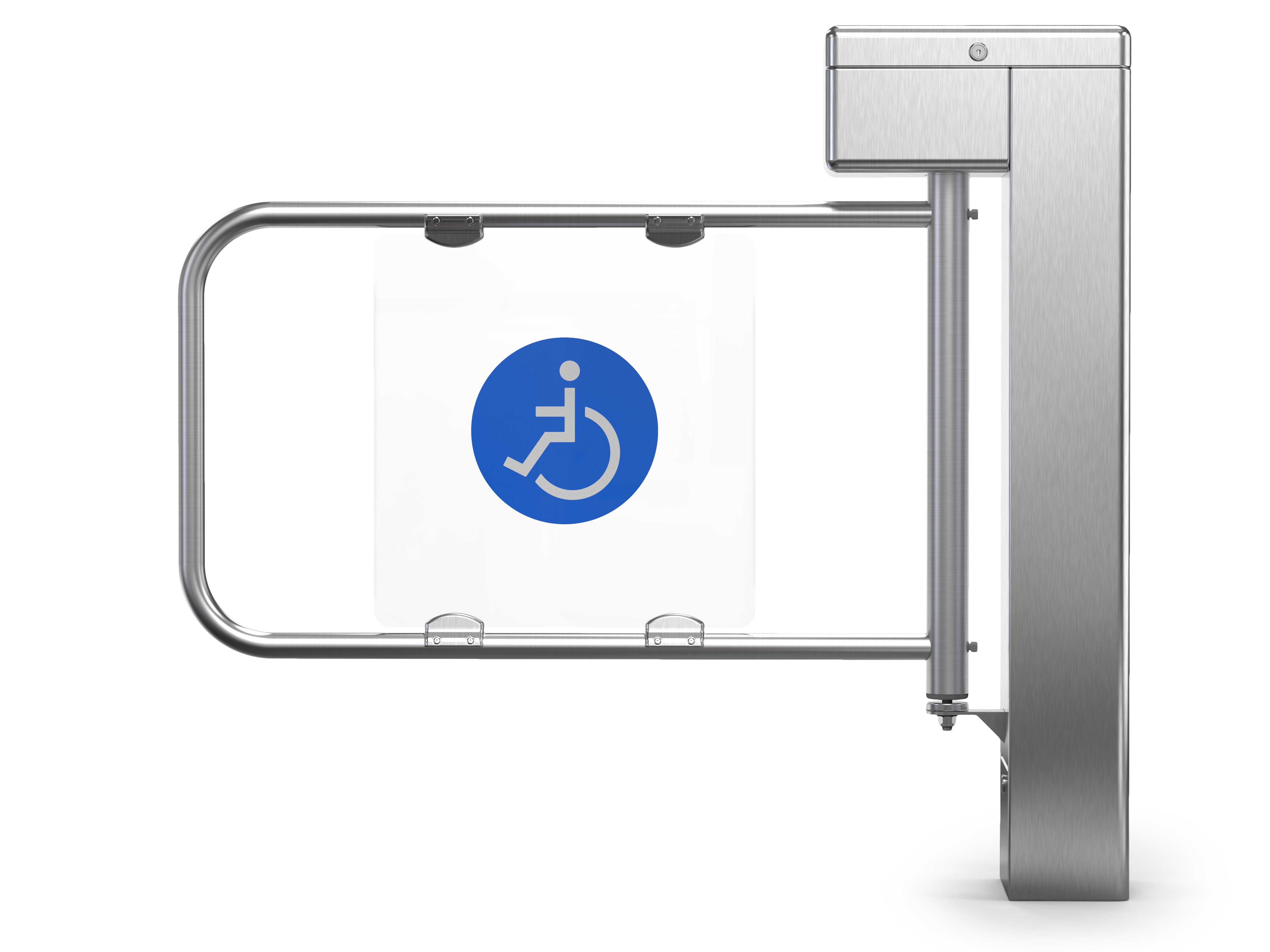

Gate iDBlock Handicapped Accessible

Always seeking for innovation, using the newest technologies, Control iD has developed a special gate destined to handicapped and disabled people's access. With an horizontal articulated arm mechanism and a modern design, iDBlock gate can be can be used in any type of environment and facility. The product has a touch screen display enabling friendly and intuitive user interaction. In addition, iDBlock can operate either as standalone and offline, or connected to the internet, through the online mode.

  • Horizontal articulated arm mechanism
  • 7" touchscreen color display
  • TCP/IP communication
  • Stand alone and online operation
  • Modern and innovative design

Access Control

  • Entrance Control Definition of the rotation direction and passage confirmation
  • Anti Double-Entry Multiple-pass blocking for the same direction
  • Collection box Possibility of validating and collecting visitor badges
  • Number of users Capacity for more than 200,000 users (card/password)
  • Quantity of Fingerprints Capacity for more than 2,000 fingerprints off-line, and more than 100,000 online

Mechanism

  • Durability More than 800,000 turns and easy maintenance
  • Noise Extremely quiet mechanism

Identification Technology

  • Biometric Reader 500 DPI Optical Fingerprint Reader
  • Proximity Cards MIFARE™ or 125kHz technologies (including ASK, FSK and PSK)
  • Password User identification using number password

Communication

  • Ethernet 1 native 10/100Mbps Ethernet port
  • RS-485 1 native RS-485 port with a 120Ω termination (optional)
  • RS-232 1 native RS-232 port
  • GPRS GPRS connection module (optional)
  • Wi-Fi Wi-Fi connection module (optional)

User Interface

  • LCD Touchscreen7" 800x480 Color TFT LCD Display with a Resistive Touchscreen
  • Integrated Webserver Complete management software for access control via browser Embedded Access Management Software Embedded Access Management Software

General Features

  • Dimensions1112mm x 1010mm x 250mm (W x H x D)
  • Power External 12V/2A source
  • Consumption 3.5W (300mA) nominal

Interconnection Diagram

iDBlock Handicapped Accessible installation diagram
