Access Control

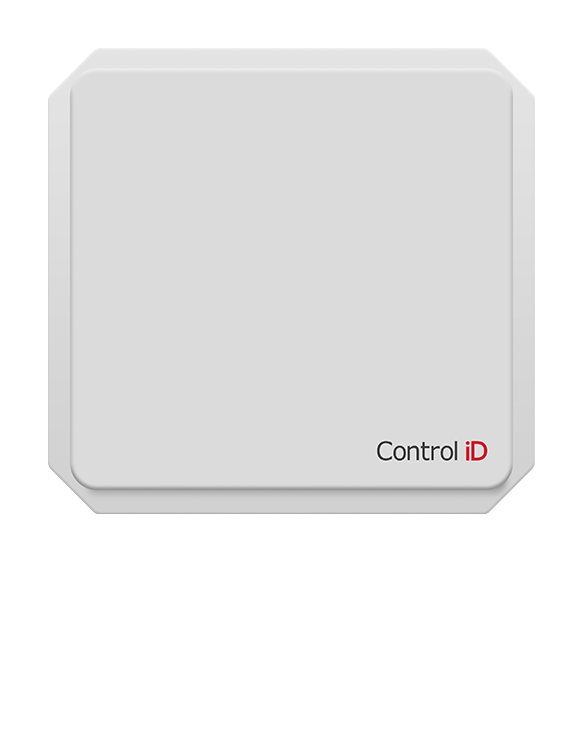

iDUHF Lite

Control iD brings to the market an equipment with IP65 protection, ideal for monitoring and controlling vehicle access in corporate and residential condominiums.

With reduced size and an integrated UHF reader with a range of up to 12 meters, the iDUHF Lite operates as an independent device that provides both the reading and authentication of vehicle tags, as well as the control of the external motor drive board.

Its storage capacity is up to 200,000 users and, through the embedded web software, it is possible to configure the product, customize access rules and generate specific reports in a simple and intuitive way.

  • Reading and authentication of tags on the device
  • Access rules and customizable reports
  • Stores up to 200,000 users
  • IP65 Protection
  • Controls motor drive board
  • Embedded software and TCP/IP

Access Control

  • Number of UsersMore than 200,000 registered users
  • Access RulesAccess rules according to schedules and departments
  • Access RecordsCapacity for over 200,000 records

Communication

  • Ethernet1 native 10/100Mbps Ethernet port
  • RS-4851 native RS-485 port with 120 Ohm termination
  • RS-2321 native RS-232 port
  • Output Relay1 relay up to 30VAC / 5A
  • Wiegand Output1 native output
  • Additional InputsTrigger and Door Sensor Inputs

Identification Methods

  • UHF ReaderReading distance up to 12m, depending on the tag used and the antenna installation conditions

User Interface

  • Integrated Web SoftwareComplete access control management from your browser Embedded Access Management Software

General Characteristics

  • General Dimensions275 mm x 275 mm x 70 mm (W x H x D) - Antena
    52 mm x 52 mm x 22 mm (W x H x D) - External Drive Module
  • Equipment Weight1280g - Antena
    35g - External Access Control Module
  • Power InputExternal 12V power supply (not included)
  • Total Consumption3,5W (300mA) rated
  • Horizontal Capture Angle30 degrees for each side

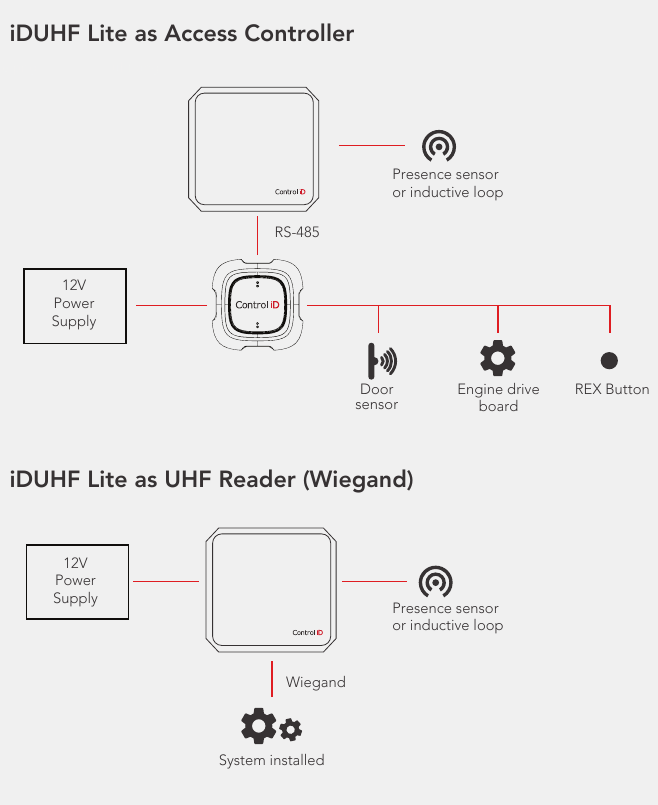

Interconnection diagram

iDUHF Installation Diagram
