iDTouch

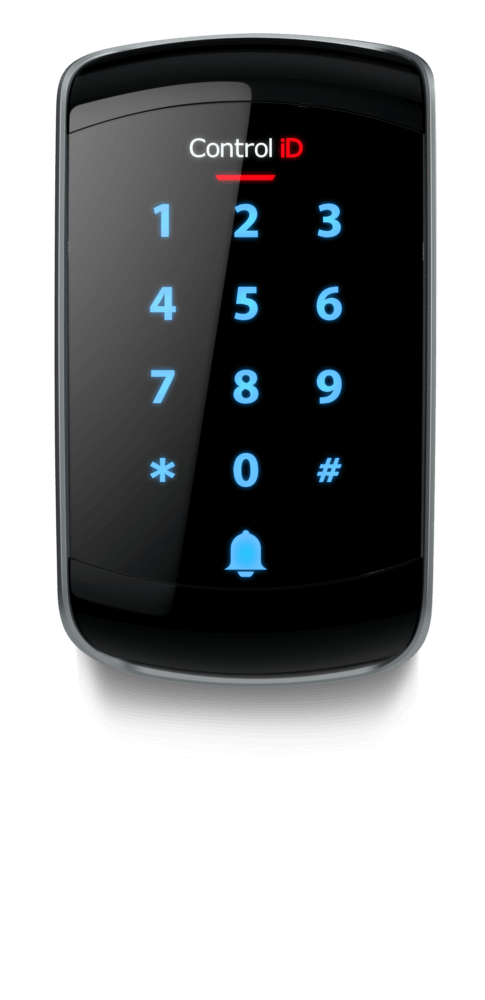

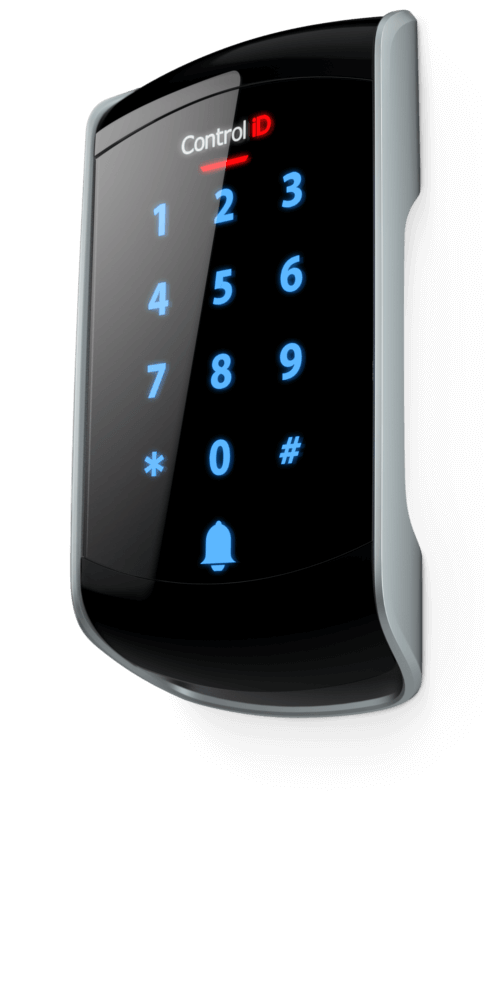

iDTouch is an access controller that uses passwords or proximity cards (RFID) to authenticate its users. Its capacitive backlit keyboard makes it easy to read the numbers and enter the personal identification code.

It can efficiently and quickly manage the entry and exit of up to a thousand people and can synchronize your database with both a computer and another iDTouch.

  • Capacitive Keyboard
  • Identification by password and proximity card
  • Synchronizing data between two devices
  • Capacity for 1,000 users and cards
  • Door opening control

Access Control

  • Door Control1 door with a pushbutton entrance
  • Number of usersCapacity for up to 1000 users
  • Number of PasswordsCapacity for up to 1000 passwords
  • Number of CardsCapacity for up to 1000 RFID cards
  • Identification (according to model)Password, Card or both
  • Output relay1 independent relay up to 220VAC/5A
  • Electric bell1 logic interface for controlling an external relay
  • Violation DetectionContinuous beep in case of violation

Communication

  • Wiegand Input1 native port for Wiegand communication
  • Wiegand Outputs1 native port for Wiegand communication
  • BackupAllows you to download the settings to a PC *
  • SynchronizationEnables user transfers from one iDTouch to another
  • *Adapter module sold separately

Identification Technology

  • Proximity CardsMIFARE™ or 125kHz (ASK) technologies, depending on model
  • PasswordIdentification of users using a 4 to 6 digit number password

User Interface

  • Capacitive Keys13 capacitive backlit keys
  • LED IdentificationGreen and Red LED
  • Buzzer4kHz and 70dbA @ 100mm Buzzer

General Features

  • Dimensions15 cm x 8 cm x 3 cm (W x H x D)
  • Equipment weight155g
  • Packaged weight205g
  • PowerExternal 12V source (not included)
  • Total Consumption1.8W (150mA) nominal

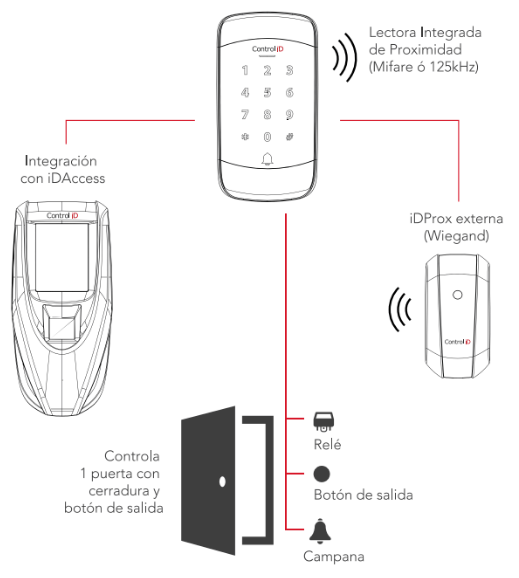

Interconnection diagram

iDTouch Installation Diagram
