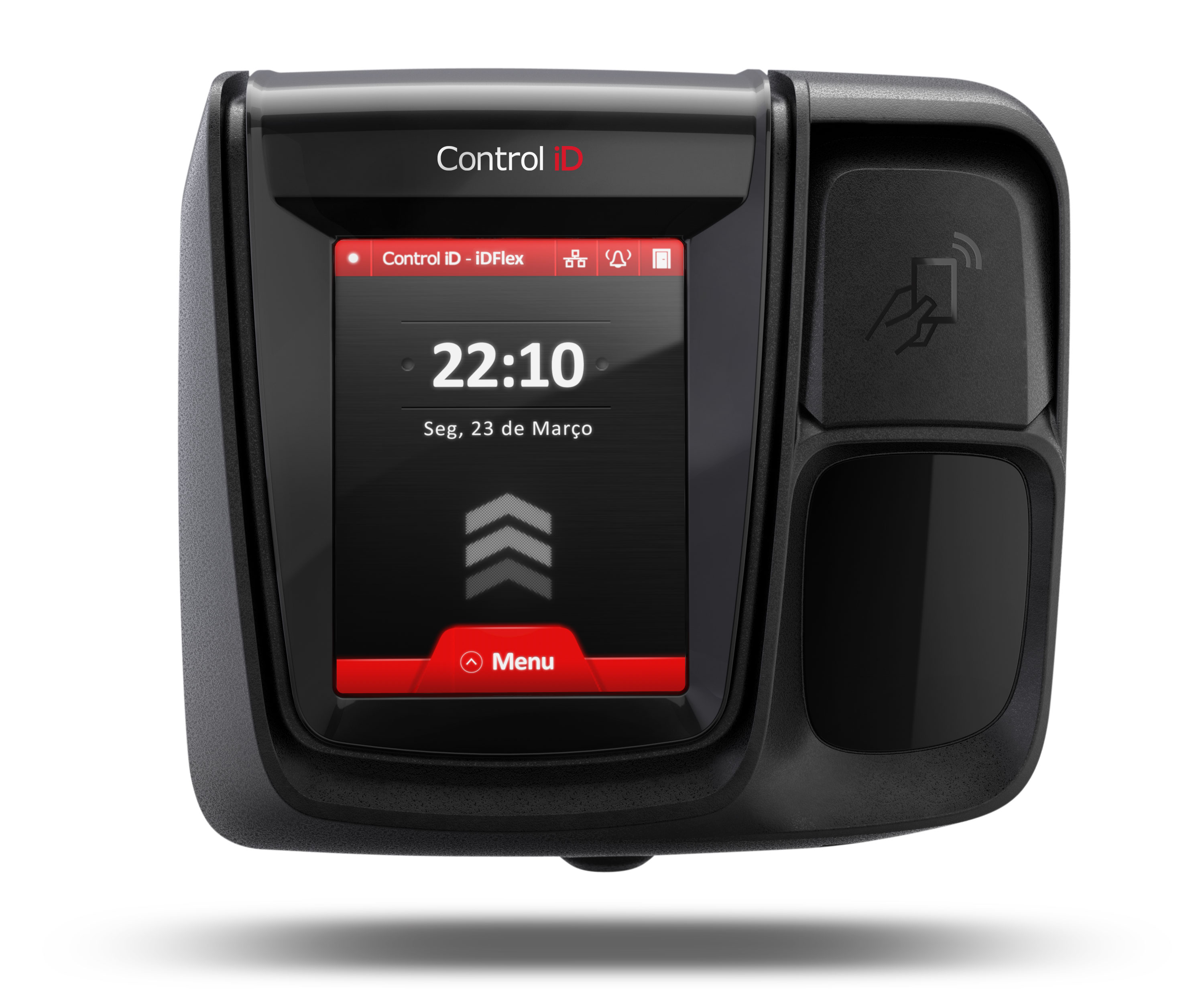

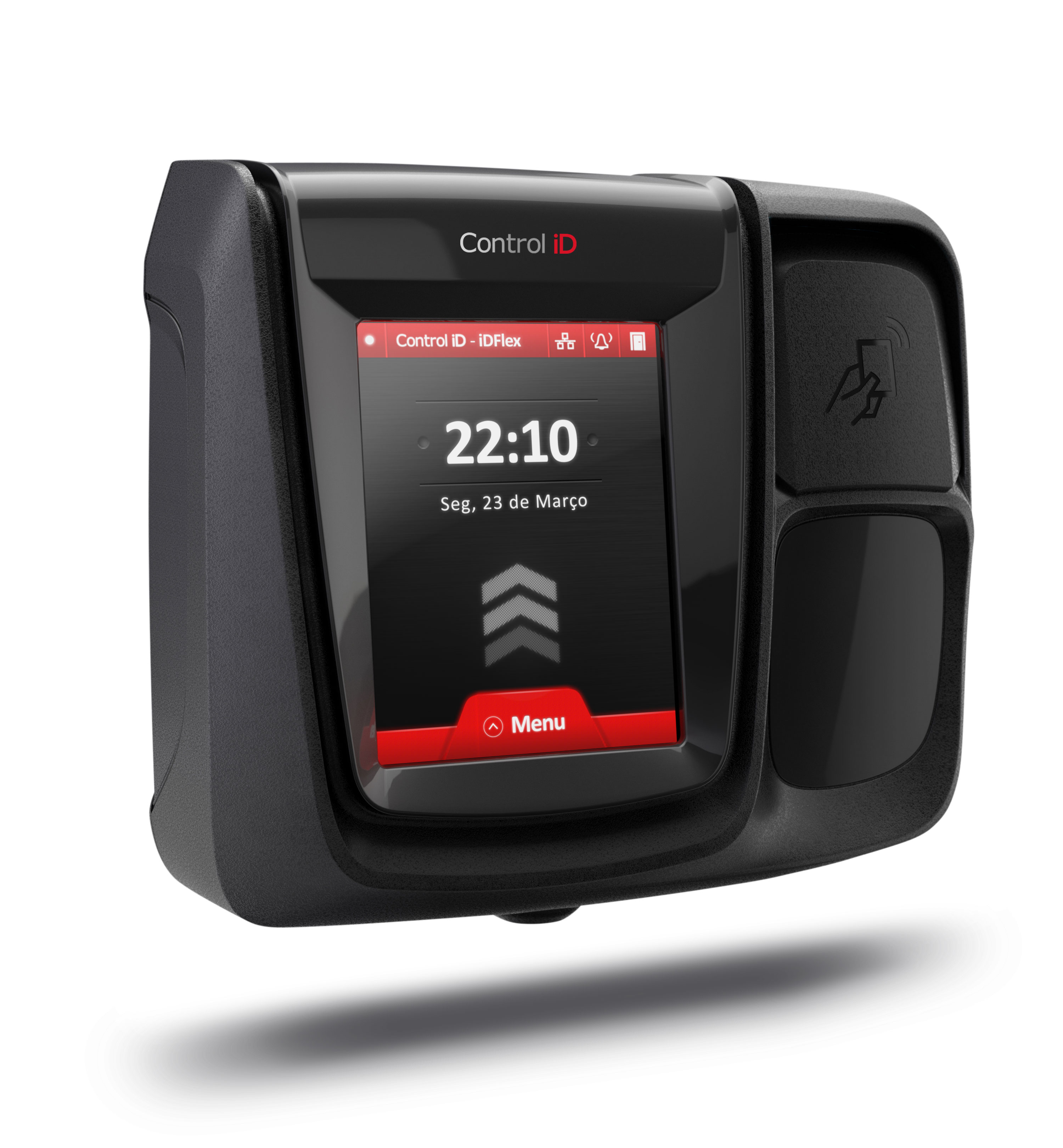

iDFlex Pro Prox

iDFlex Pro Prox is a robust access controller, capable of assisting organizations, regardless of size.

Provides an intuitive interface on the 2.4" LCD touch screen which makes it easy for users to see information due to its colorful appearance. In addition, iDFlex's external activation module provides expandable solutions with greater security which can be integrated with the iDCloud software in the Pro version.

  • Display touchscreen
  • Customized access rules by groups and schedules
  • Proximity card, barcodes and password
  • External drive module with relay
  • Best cost-benefit in the market

Access Control

  • Number of users Capacity for more than 200,000 users
  • Access rules Access rules according to schedules and departments
  • Access Records Capacity for more than 200,000 records
  • iDCloud Monitoring, synchronization, and backup services on the cloud (optional)
  • Wiegand Inputs 1 native Wiegand port
  • Wiegrand Outputs 1 native Wiegand port
  • Output relays 1 internal relay in the drive module with up to 220VAC/5A

Communication

  • Ethernet 1 native 10/100Mbps Ethernet port
  • USB 1 USB 2.0 Host Port
  • RS-485 1 RS-485 port for communication between the external access control module and terminal
  • GPRS GPRS connection module (optional)
  • Wi-Fi Wi-Fi connection module (optional)

Identification Technology

  • Proximity Cards MIFARE™ or 125kHz technologies (including ASK, FSK and PSK)
  • Password User identification using number password

User Interface

  • LCD Touchscreen 2.4" 320x240 Color TFT LCD Display with a Resistive Touchscreen
  • Integrated Web Server Complete management software for access control via browser Embedded Access Management Software Embedded Access Management Software

General Features

  • Dimensions 100mm x 95mm x 36mm (L x W x D) - Terminal
    52mm x 52mm x 22mm (L x W x H) - drive module
  • Equipment weight 212g - Terminal
    34g - drive module
  • Packaged weight 263g
  • PowerExternal 12V source (not included)
  • Consumption 2.4W (200mA) nominal

Interconnection Diagram

Interconnection Diagram
