Access Control
iDBox

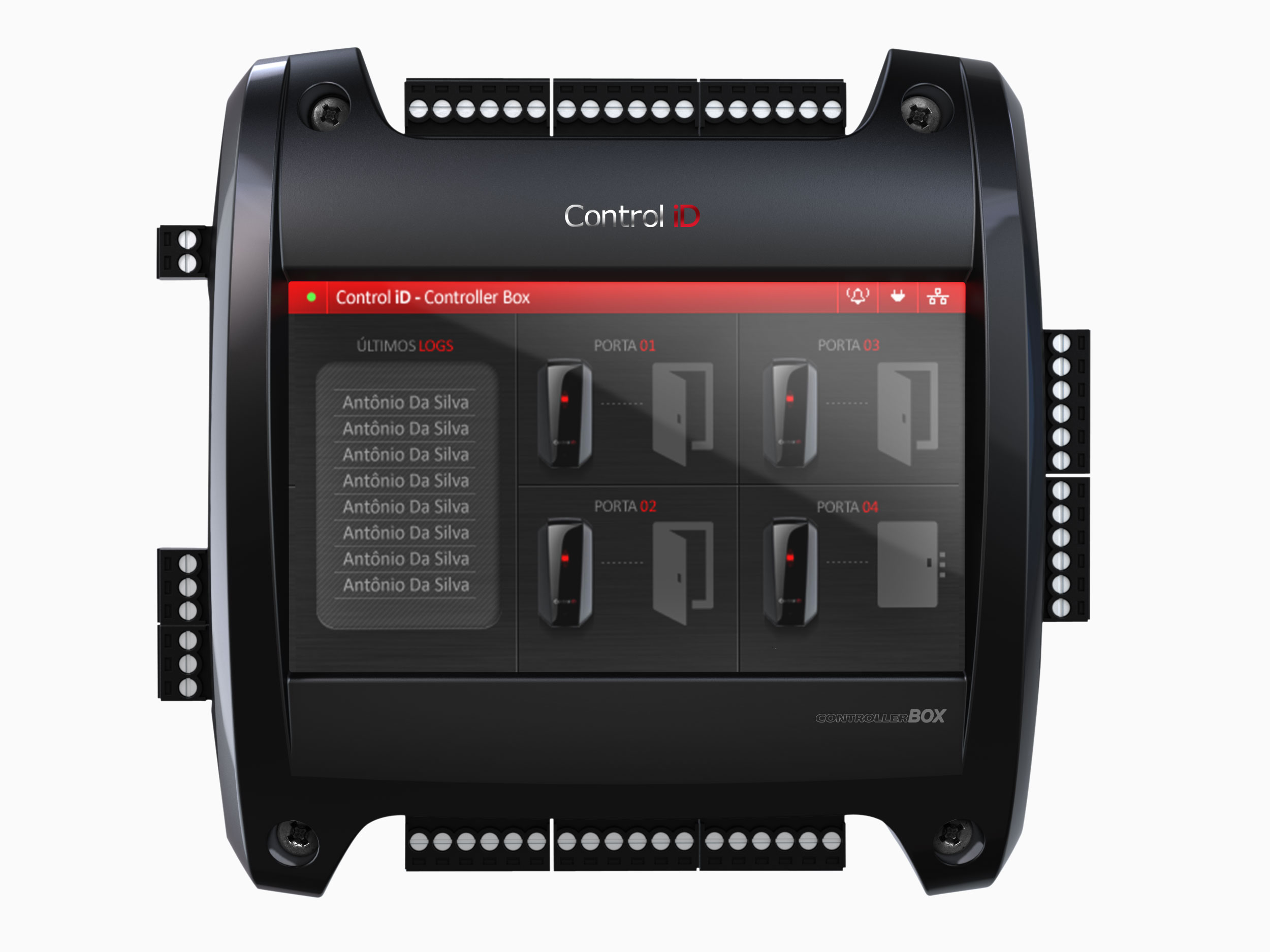

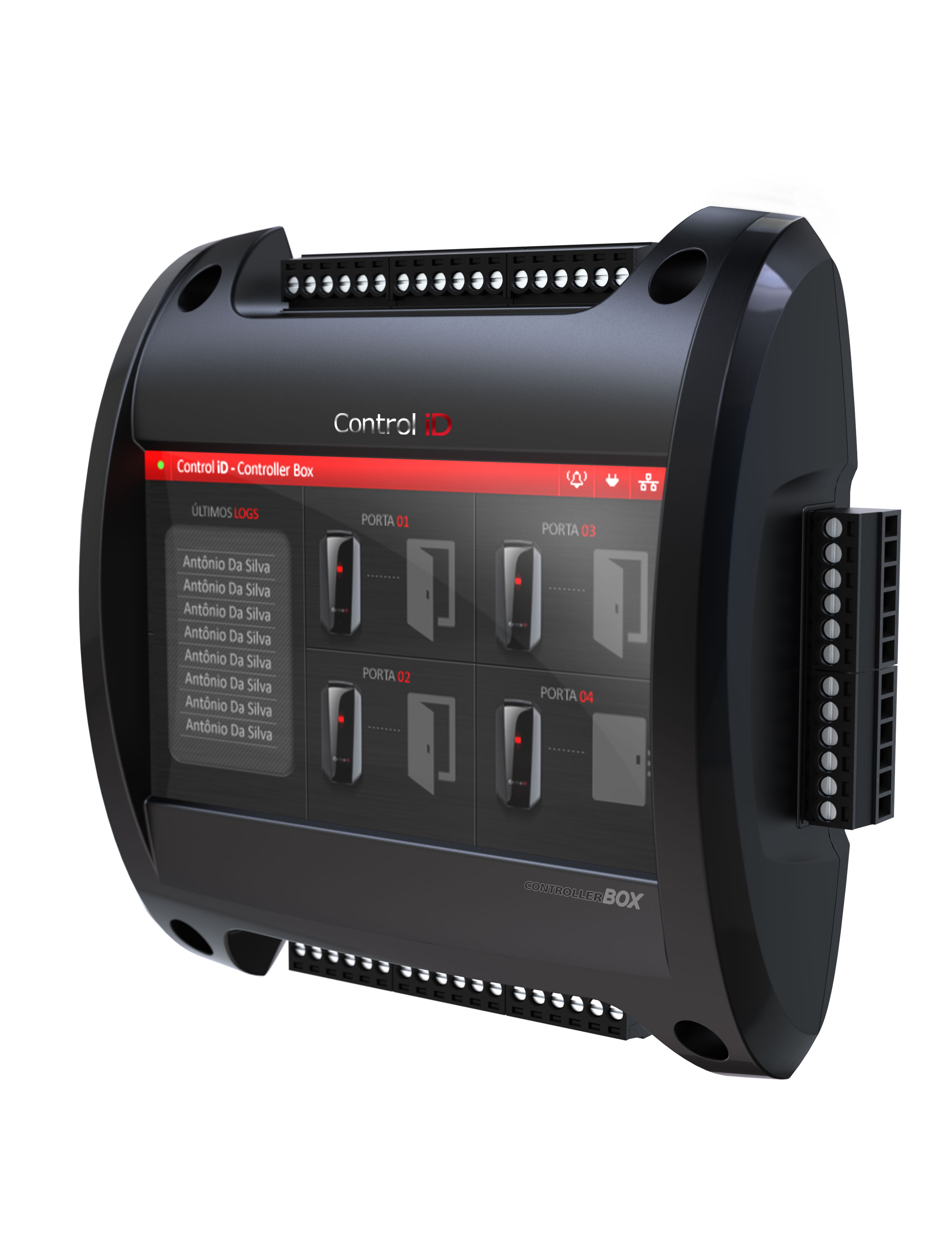

The controller board - also called a multifunctional access controller - iDBox presents the most advanced single product solution when it comes to managing people entering and exiting restricted locations. Equipped with a 4.3" LCD touch screen display and integrated web software, it can manage the authorizations for up to 200,000 users at four different doors.

iDBox can manage access rules by groups and schedules, authenticating permissions through proximity readers and biometric sensors. In addition, it can be integrated with iDCloud, enabling cloud management and contingency.

  • Embedded webserver eliminating installation processes
  • Controls biometric and proximity terminals
  • Contains 4 relays and monitors pushbuttons and door sensors
  • Interlock and double entry rules
  • Ethernet communication, RS-485, RS-232 and Wiegand/ABATRACK

Access Control

  • Door control 4 individual entrances for the pushbutton and door sensor
  • Number of users Capacity for more than 200,000 users
  • Access rules Access rules according to schedules and departments
  • Access Records Capacity for more than 200,000 records
  • iDCloud Monitoring, synchronization, and backup services on the cloud (optional)
  • Wiegand Inputs 4 native ports (configurable for ABATRACK II)
  • Output relays 4 relays (1 per port) up to 220VAC/5A with NO/NC/COM contacts

Communication

  • Ethernet 1 native 10/100Mbps Ethernet port
  • USB 1 USB 2.0 Host Port
  • RS-485 1 native RS-485 port with a 120Ω termination
  • RS-232 1 native RS-232 port
  • GPRS GPRS connection module (optional)
  • Wi-Fi Wi-Fi connection module (optional)

User Interface

  • LCD Touchscreen4.3" 480x272 Color TFT LCD Display with a Resistive Touchscreen
  • Integrated Webserver Complete management software for access control via browser Embedded Access Management Software
  •   Embedded Access Management Software

General Features

  • Dimensions 39mm x 125mm x 129mm (P x A x L)
  • Equipment weight 250g
  • Packaged weight 400g
  • Power External 12V source (not included)
  • Consumption 3.5W (300mA) nominal

Interconnection diagram

iDAccess Installation Diagram
