Turnstile

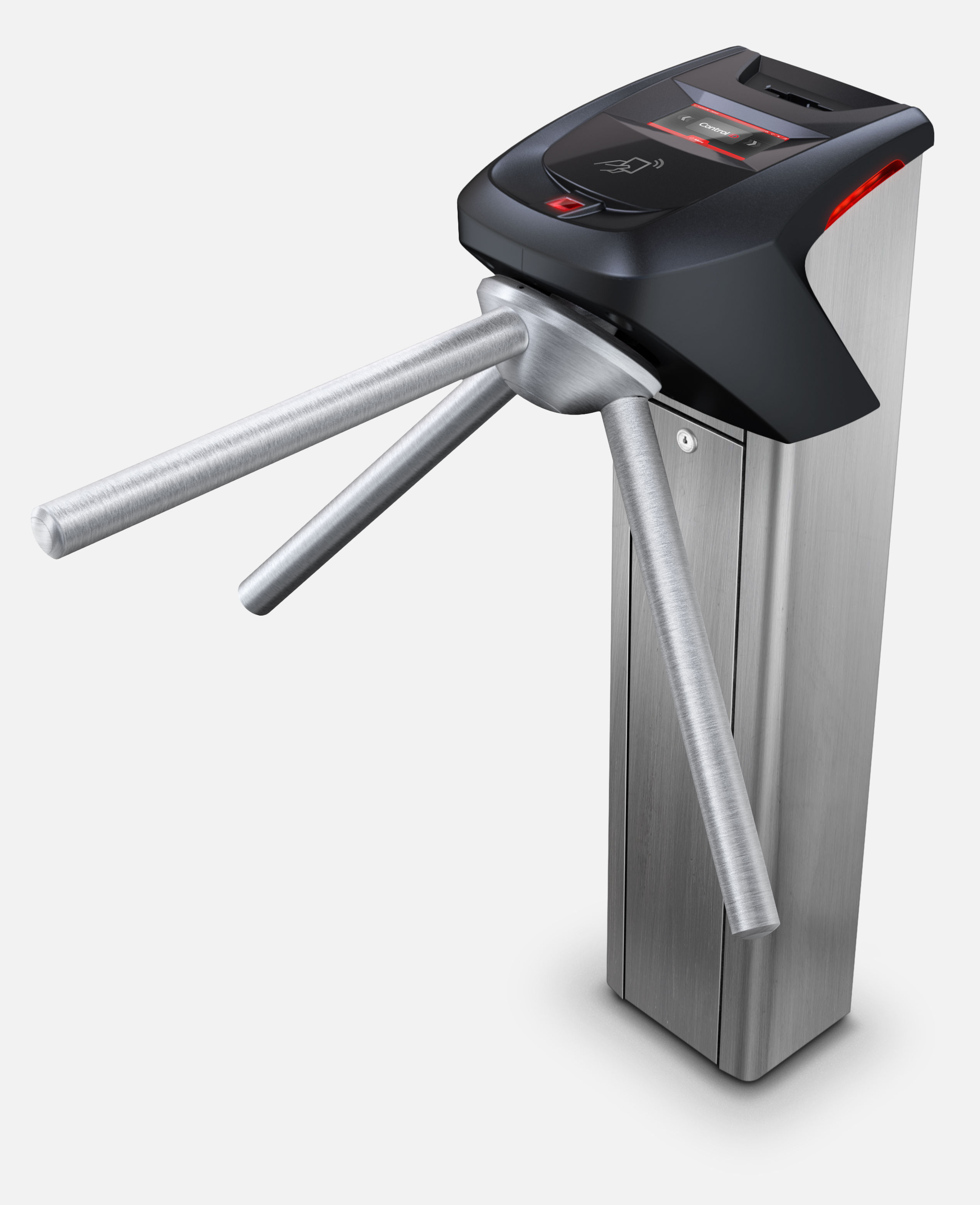

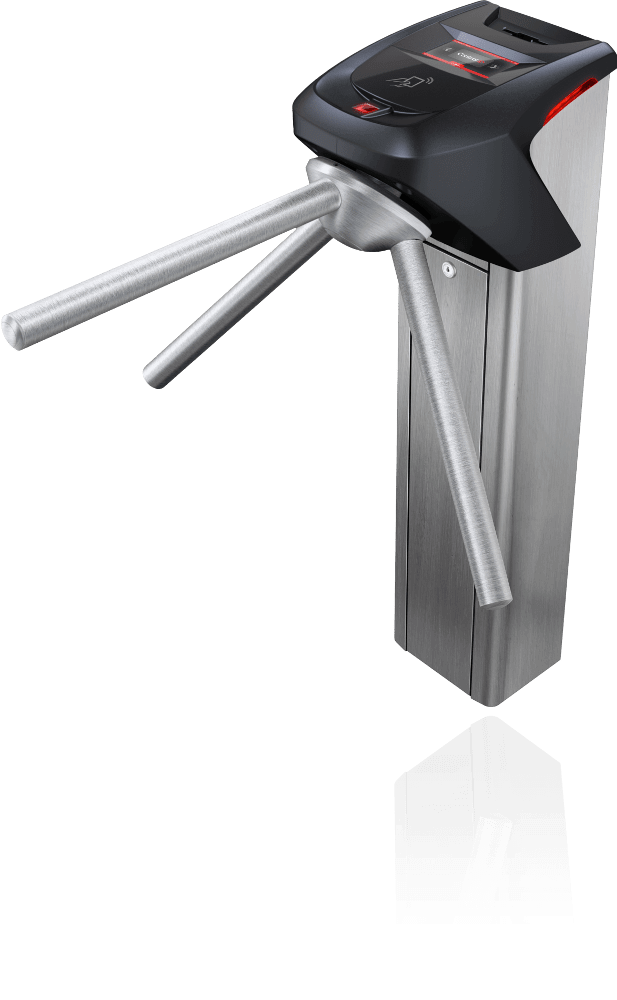

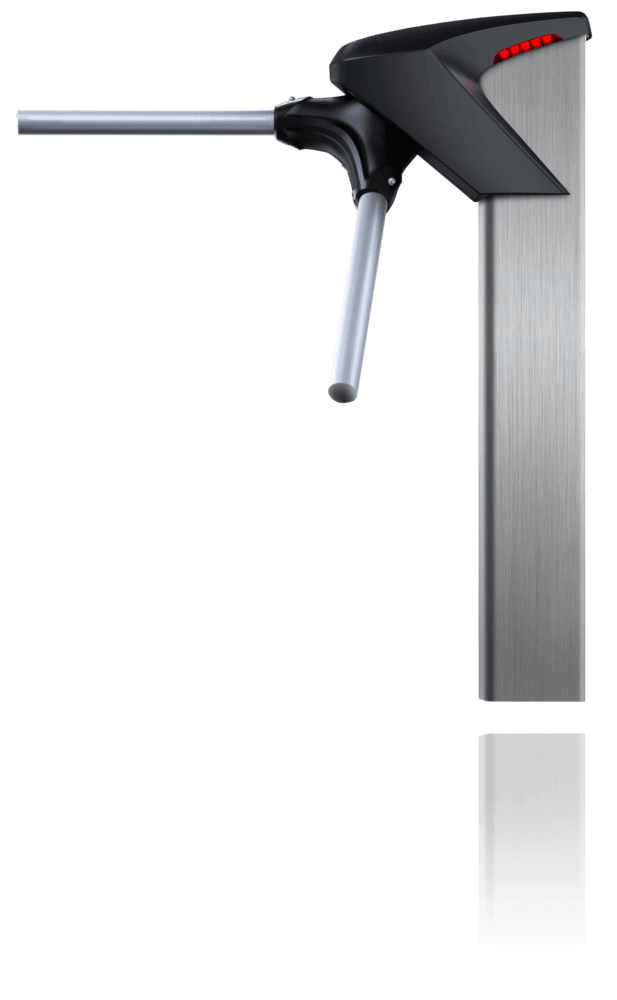

Stainless steel iDBlock

The stainless steel iDBlock turnstile is also equipped with a modern and efficient ultra-quiet mechanism, which allows for more than 800 thousand turns before requiring maintenance. Like the iDBlock Black, the Stainless-steel model is equipped with a touch sensitive display, can validate and collect visitor badges in a specific box and has a system that blocks multiple passes in the same direction, avoiding double entrances.

  • Revolutionary ultra-quiet mechanism
  • 4.3" touchscreen color display
  • TCP/IP communication
  • Stand alone and online operation
  • Modern and innovative design

Access Control

  • Entrance Control Definition of the rotation direction and passage confirmation
  • Anti Double-Entry Multiple-pass blocking for the same direction
  • Collection box Possibility of validating and collecting visitor badges
  • Number of users Capacity for more than 200,000 users (card/password)
  • Quantity of Fingerprints Capacity for more than 2,000 fingerprints off-line, and more than 100,000 online

Mechanism

  • Durability More than 800,000 turns and easy maintenance
  • Noise Extremely quiet mechanism

Identification Technology

  • Biometric Reader 500 DPI Optical Fingerprint Reader
  • Proximity Cards MIFARE™ or 125kHz technologies (including ASK, FSK and PSK)
  • Password User identification using number password

Communication

  • Ethernet 1 native 10/100Mbps Ethernet port
  • USB 1 USB 2.0 Host Port
  • RS-485 1 native RS-485 port with a 120Ω termination
  • RS-232 1 native RS-232 port
  • GPRS GPRS connection module (optional)
  • Wi-Fi Wi-Fi connection module (optional)

User Interface

  • LCD Touchscreen4.3" 480x272 Color TFT LCD Display with a Resistive Touchscreen
  • Integrated Webserver Complete management software for access control via browser Embedded Access Management Software Embedded Access Management Software

General Features

  • Dimensions 770mm x 968mm x 685mm (W x H x D)
  • Weight From 20 to 22kg according to settings
  • Power External 12V source
  • Consumption 3.5W (300mA) nominal

Interconnection Diagram

iDblock Installation Diagram
