Access Control
iDAccess

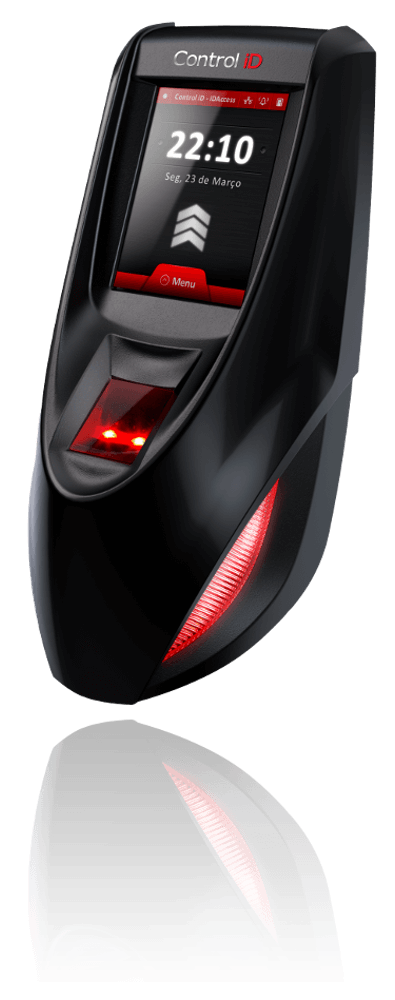

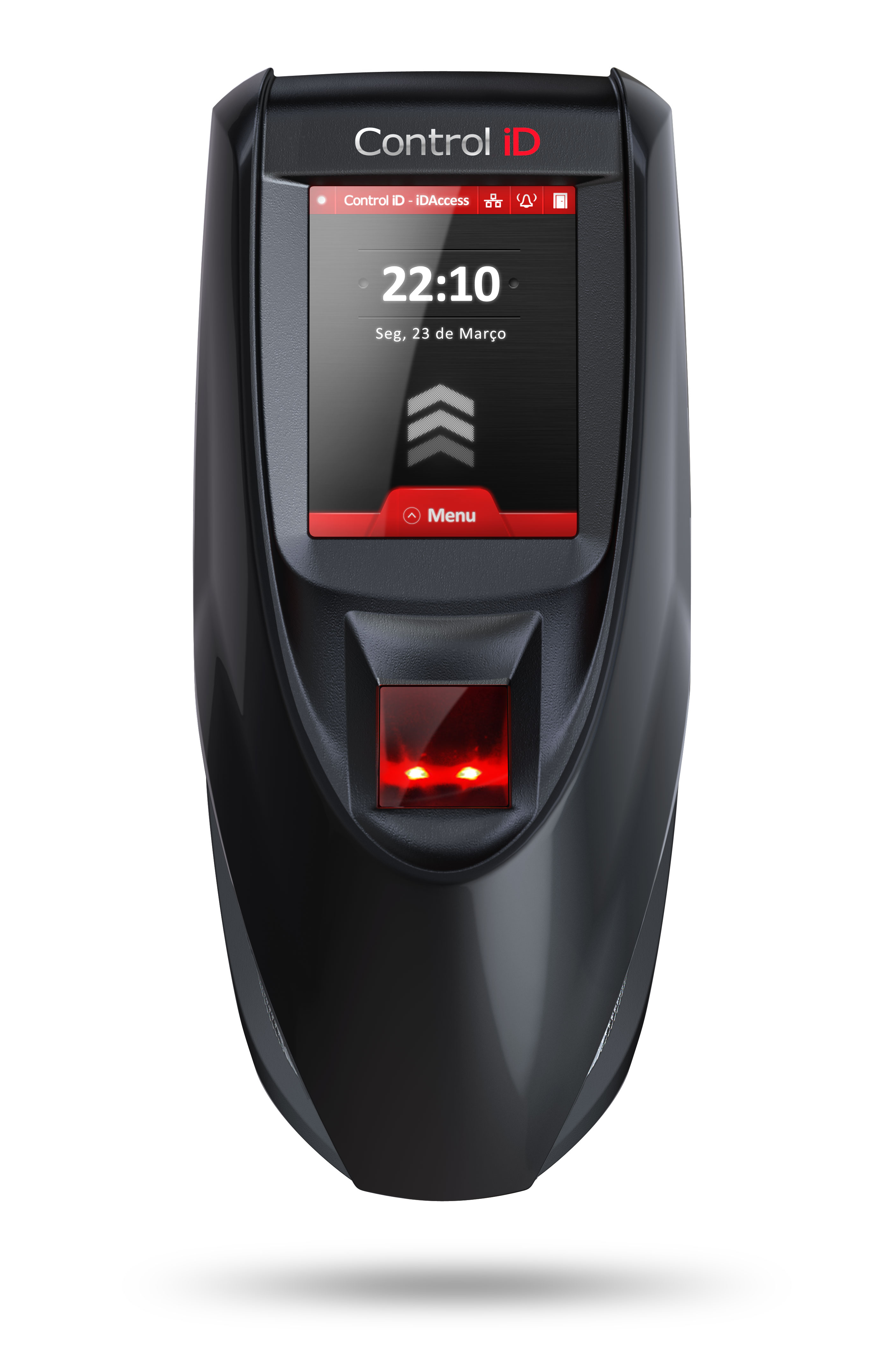

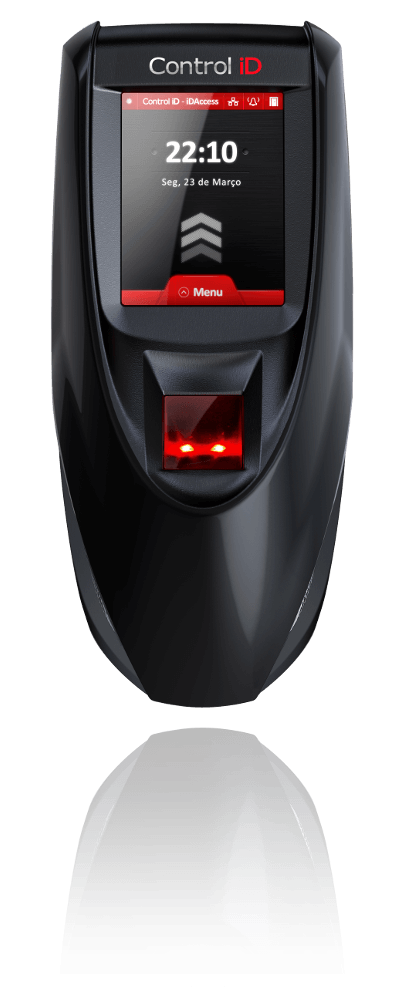

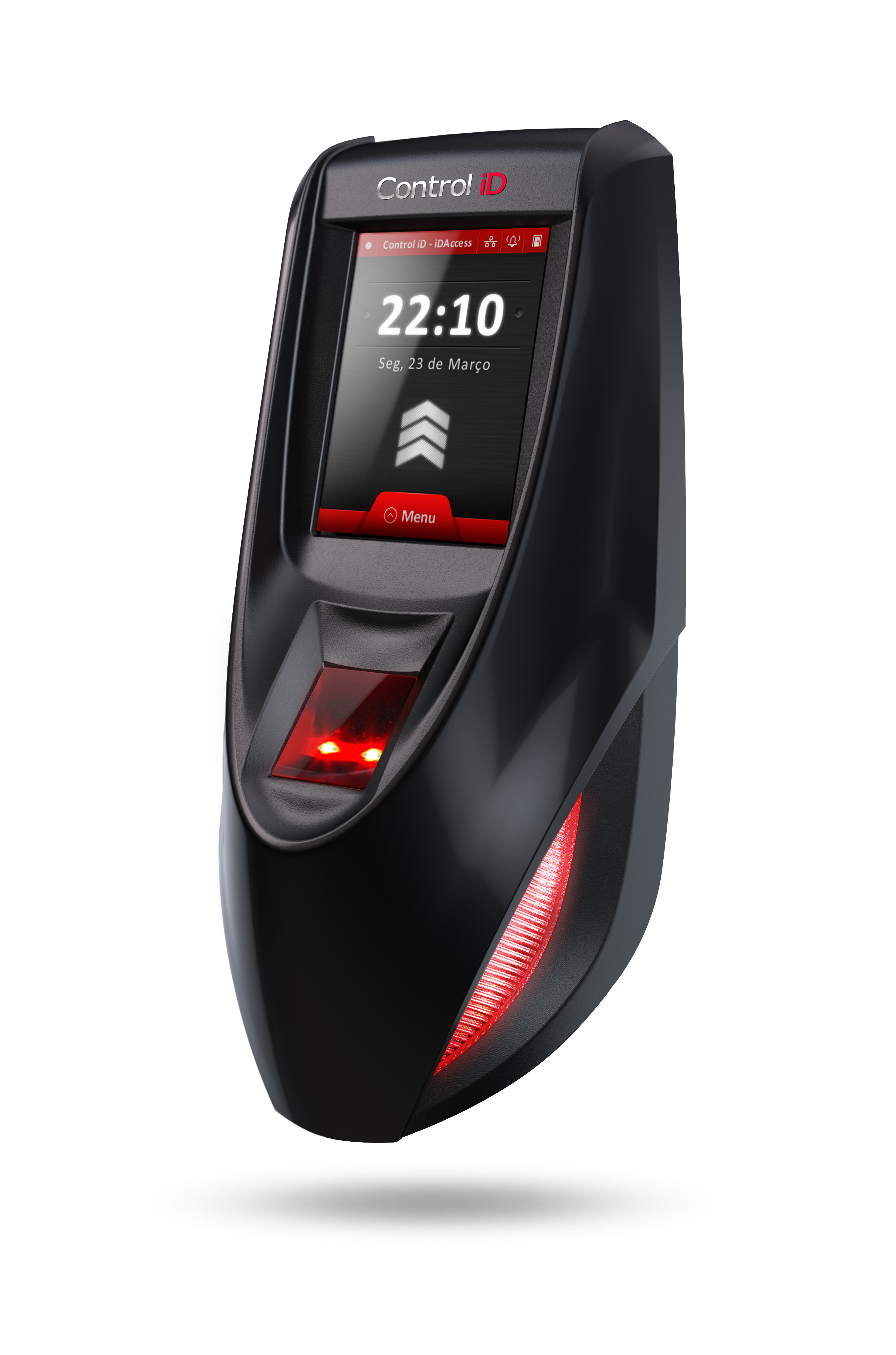

With its compact and modern design, the Control iD Access Controller iDAccess can monitor people entering and exiting a specific room, in a practical and safe manner. With the ability to store up to 200,000 records and 100,000 different fingerprints (with iDSecure Enterprise), iDAccess can be programmed with customized restrictions for specific groups and schedules.

The iDAccess Access Controller is simple and intuitive, providing authorizations with personal passwords, magnetic cards, barcodes and biometrics. Its embedded software does not require installations and enables automatic backup synchronization on the cloud.

  • Display touchscreen
  • Customized access rules by groups and schedules
  • Biometric identification, proximity card, barcodes and password
  • Embedded web access software eliminating installation processes
  • Integrated alarm center

Access Control

  • Door control 2 individual entrances for the pushbutton and door sensor
  • Number of users Capacity for more than 200,000 users
  • Quantity of Fingerprints Capacity for more than 2,000 fingerprints for the stand alone mode and more than 100,000 for the online mode
  • Access rules Access rules according to schedules and departments
  • Access Records Capacity for more than 200,000 records
  • iDCloudMonitoring, synchronization, and backup services on the cloud (optional)
  • Wiegand Inputs 1 native Wiegand port (expandable to 4); which can be configured as ABATRACK II
  • Wiegrand Outputs 1 native Wiegand port (expandable to 4); which can be configured as ABATRACK II
  • Output relays 2 independent relays up to 220VAC/5A

Alarm center

  • Alarm Inputs 5 independent alarm zones with a configurable trigger and polarity times
  • Alarm outputs Transistor output with maximum capacity for 12VDC @ 10mA
  • Vandalism Detection Configurable support equipment removal alarm
  • Burglar Detection Configurable door-opening alarm without relay tripping
  • Coercion detection Possible panic finger registration by user

Communication

  • Ethernet 1 native 10/100Mbps Ethernet port
  • USB 1 USB 2.0 Host Port
  • RS-485 1 native RS-485 port with a 120Ω termination
  • GPRS GPRS connection module (optional)
  • Wi-Fi Wi-Fi connection module (optional)

Identification Technology

  • Biometric Reader 500 DPI Optical Fingerprint Reader
  • Proximity Cards MIFARE™ or 125kHz technologies (including ASK, FSK and PSK)
  • Password User identification using number password

User Interface

  • LCD Touchscreen 2.6" 320x240 Color TFT LCD Display with a Resistive Touchscreen
  • Integrated Webserver Complete management software for access control via browser Embedded Access Management Software Embedded Access Management Software

General Features

  • Dimensions 55mm x 170mm x 70mm (W x H x D)
  • Equipment weight 250g
  • Packaged weight 400g
  • Power External 12V source (not included)
  • Consumption 2.4W (200mA) nominal

Interconnection diagram

iDAccess Installation Diagram
