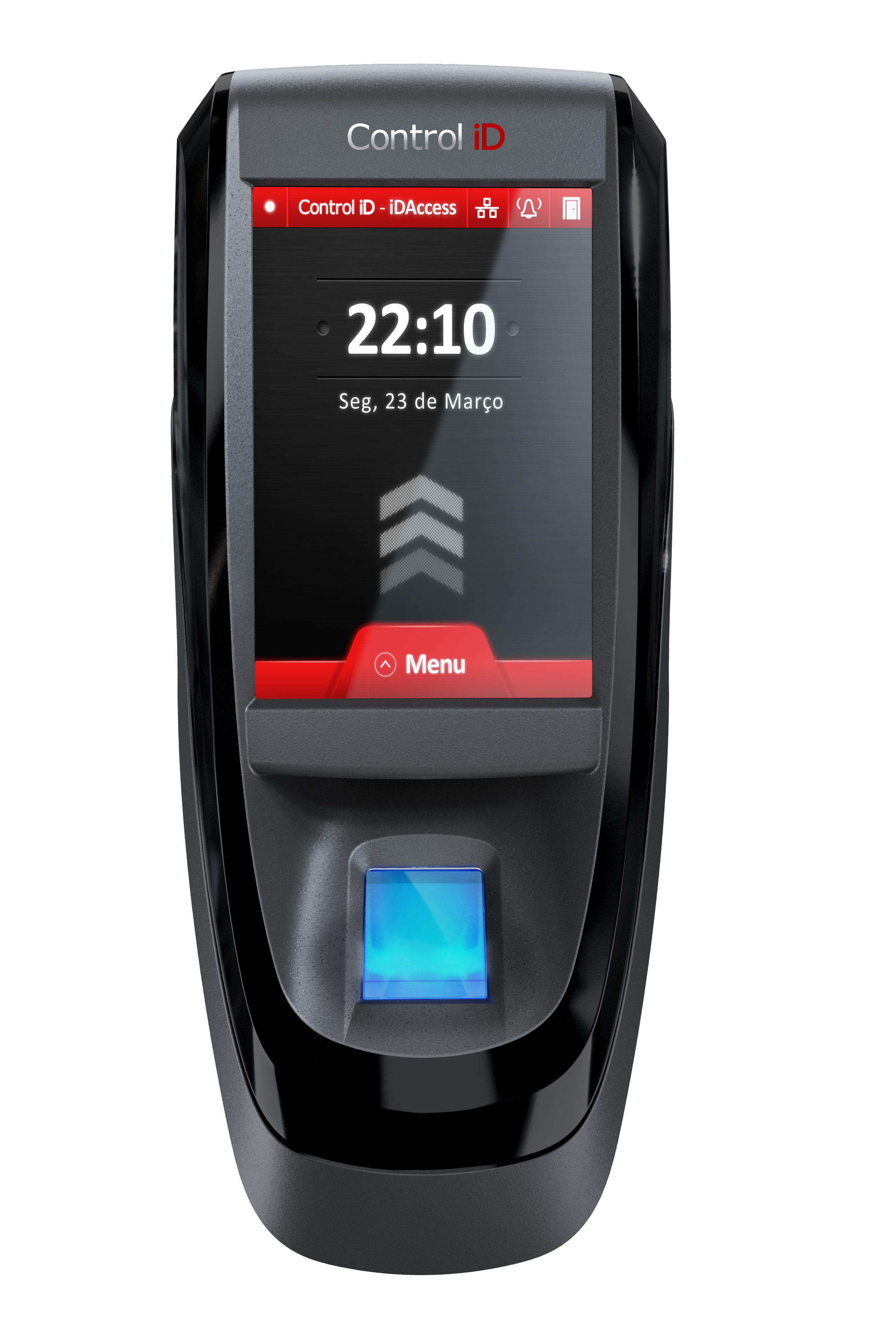

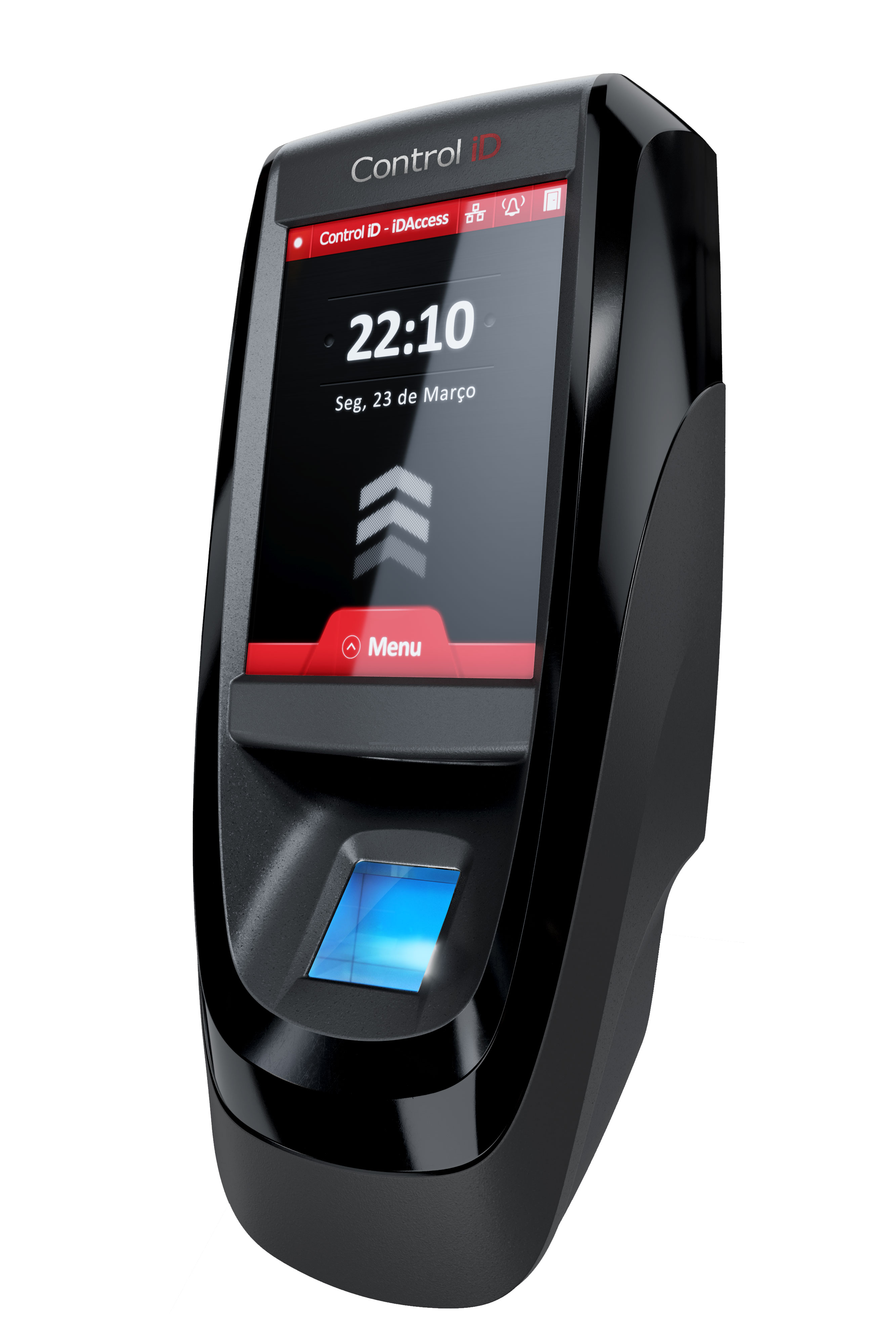

iDAccess Pro

Modern and innovative, iDAccess Pro is the ideal device to monitor and control people entering and leaving corporate environments that demand high performance. The quad-core 1.2GHz processor ensures identification of up to 100,000 fingerprints 1:N in stand-alone mode. In addition, the device has a 3.5” touchscreen display and embedded web software that facilitates access rule management.

  • 3.5” touchscreen display
  • 1.2 GHz quad-core processor
  • TCP / IP communication
  • Biometric Identification 1: N up to 100,000 fingerprints (depending on model)
  • Customized access rules according to groups and schedules
  • Biometric identification, proximity card and password

Access Control

  • User Capacity More than 200,000 registered users
  • Fingerprints Capacity Capacity for 10,000 / 30,000 / 50,000 / 100,000 fingerprints (depending on model)
  • Access rules Customized by time, group and department
  • Door control Control through external access control module
  • Sensors and REX Button 1 REX button and 1 open door sensor
  • Relay Output 1 internal relay in the access control rated 220VAC / 5A
  • Wiegand Input 1 native port
  • Wiegand output 1 native port

Communication

  • Ethernet 1 10/100Mbps Ethernet port
  • USB 1 USB 2.0 Host port
  • RS-485 1 RS-485 port for communication between the external access control module and terminal
  • GPRS GPRS connection module (optional)
  • Wi-Fi Wi-Fi connection module (opcional)

Modes of Identification

  • Fingerprint 500 DPI Optical Fingerprint Reader
  • Proximity Reader MIFARE™ or 125 kHz ASK (depending on model)
  • Password Numeric password

User Interface

  • LCD TouchscreenLCD TFT color display with 3.5”(320x480) resistive touch screen
  • Embedded Web SoftwareComplete access control management from your browser Embedded Access Management Software

General Characteristics

  • Terminal Dimensions 81.2mm x 51.8mm x 184mm (W x D x H)
  • External Access Control Module Dimensions 52mm x 52mm x 22mm (W x D x H)
  • Device Weight 195g
  • External Access Control Module Weight 35g
  • Power Supply External 12V source (not included)
  • Power Consumption 1,92W (160mA) nominal

Interconnection diagram

iDAccess Pro Installation Diagram
