iDAccess Nano Slave
With a modern and compact design, iDAccess Nano Slave is the ideal device for those who want to use biometrics and proximity cards in a master-slave solution. It communicates with other Control iD devices through a secure and proprietary protocol based on RS-485. Furthermore, its small size makes it suitable for installation in diverse environments.
- 1.77” touchscreen display
- Biometrics reader and proximity card
- RS-485 Communication
Communication
- USB 1 USB 2.0 Host port
- RS-485 1 RS-485 port for communication with other equipment
Modes of Identification
- Fingerprint 500 DPI Optical Fingerprint Reader
- Proximity Reader MIFARE™ or 125 kHz ASK (depending on model)
- Password Numeric password
User Interface
- LCD TouchscreenLCD TFT color display with 1.77” (128x160) resistive touch screen
General Characteristics
- Terminal Dimensions 57,3mm x 45,4mm x 129,4mm (W x D x H)
- Device Weight 110g
- Power Supply External 12V source (not included)
- Power Consumption 1,92W (160mA) nominal

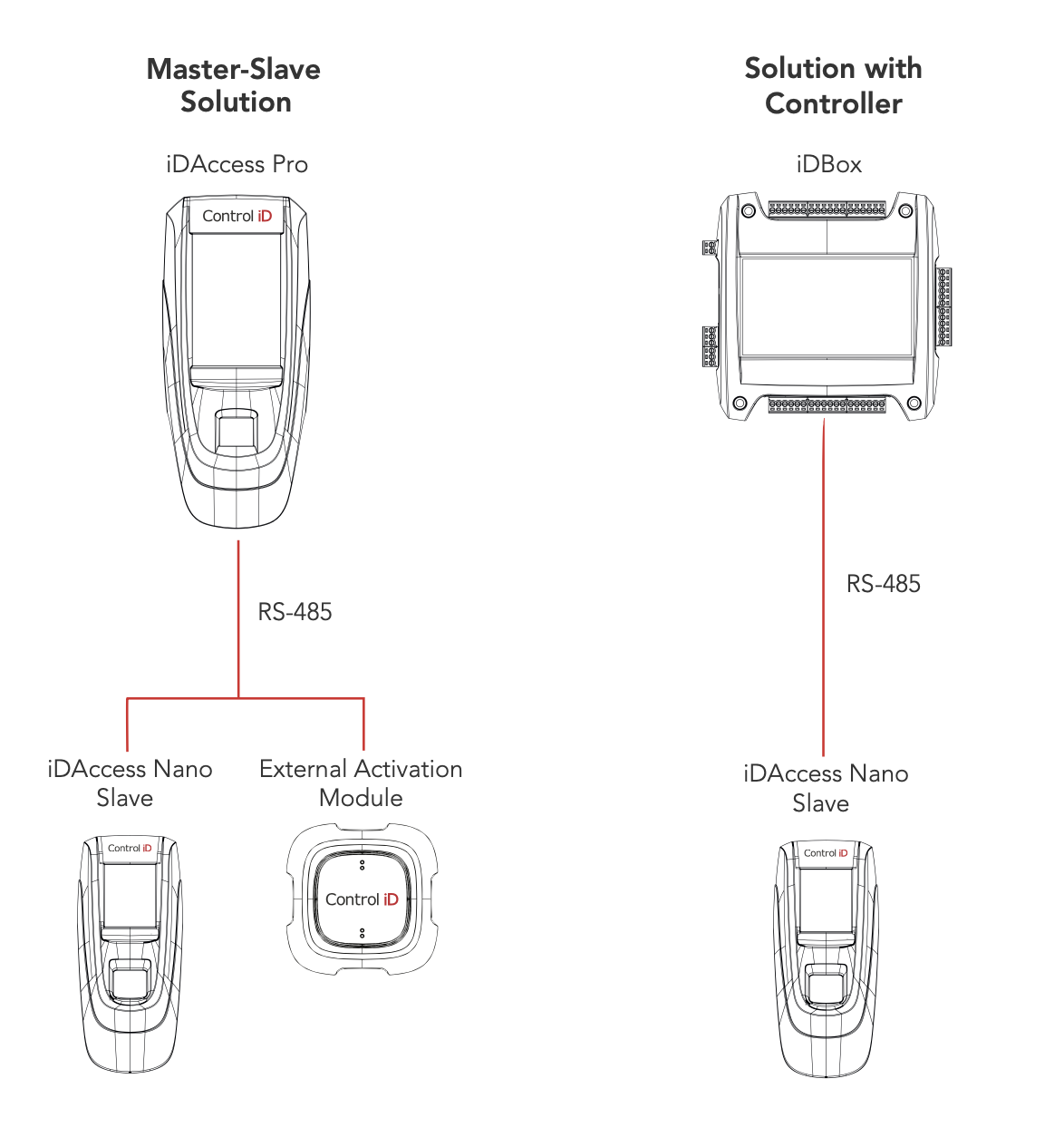

Interconnection diagram
