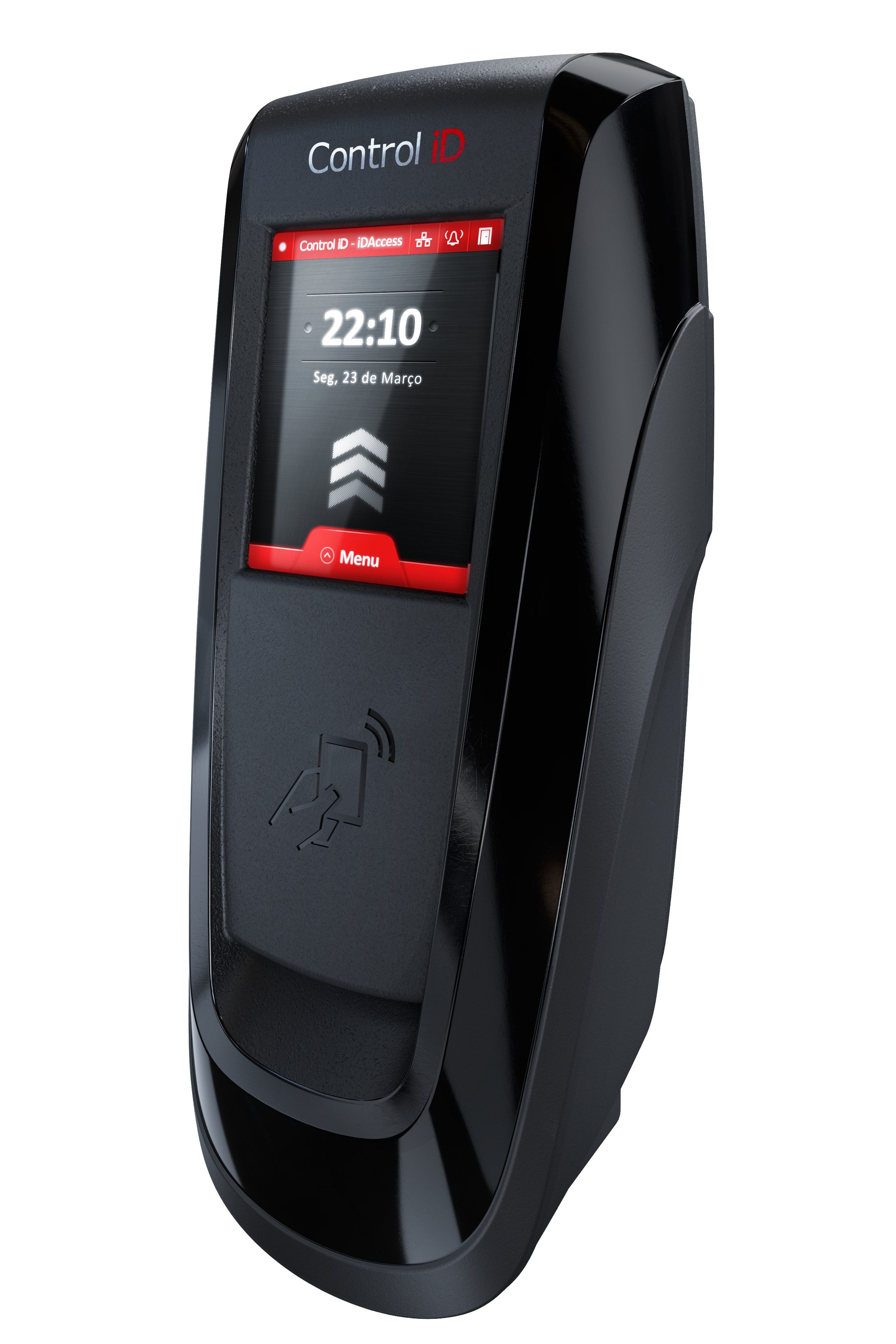

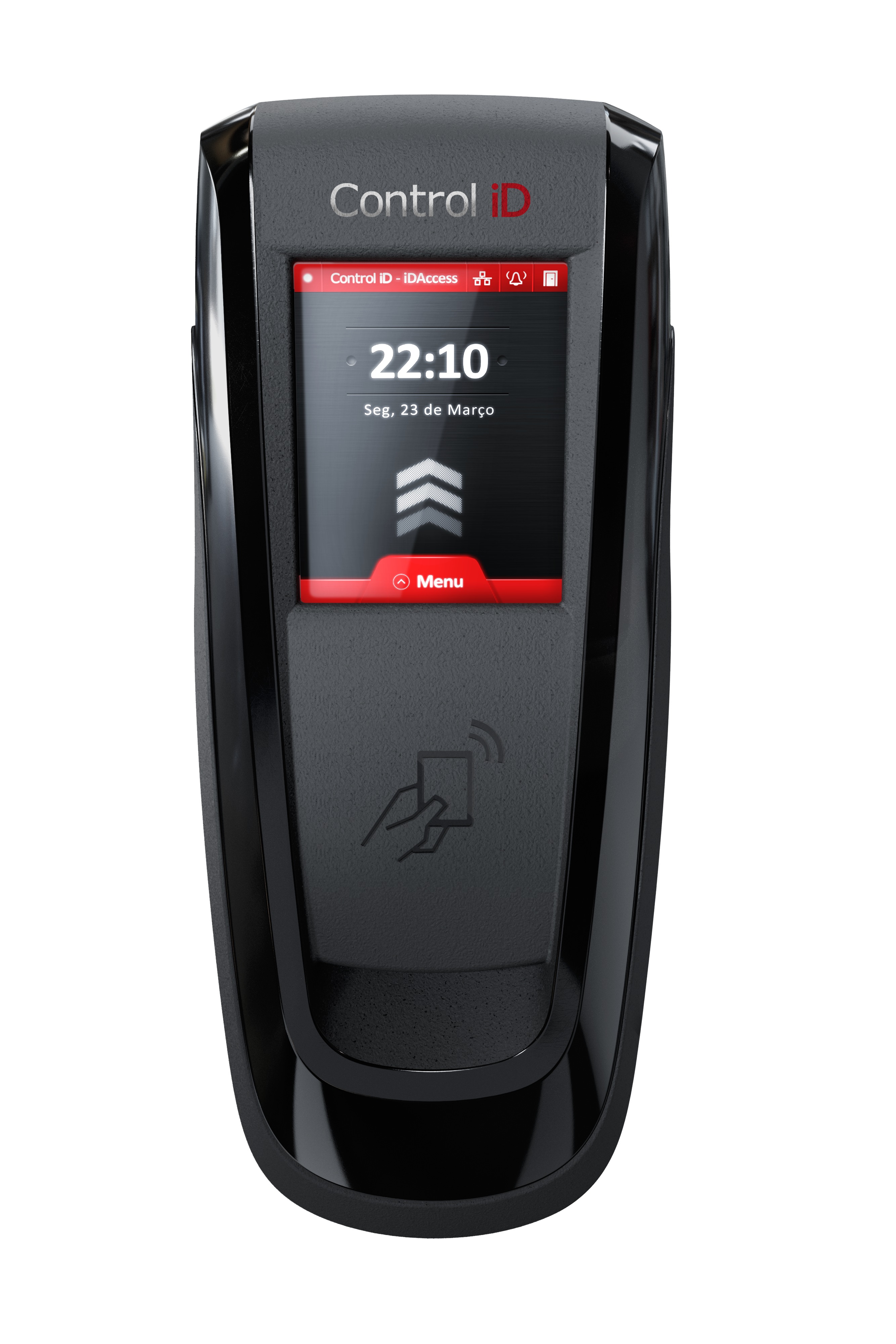

iDAccess Nano Prox

With a modern and compact design, iDAccess Nano Prox can easily monitor and control people entering and exiting. Its small size enables installation in various environments and its 1.2 GHz quad-core processor guarantees fast processing. In addition, its external access module enables expandable and safer solutions.

  • 1.77” touchscreen display
  • 1.2 GHz quad-core processor
  • TCP / IP communication
  • Customized access rules according to groups and schedules
  • Proximity card and password

Access Control

  • User Capacity More than 200,000 registered users
  • Access rules Customized by time, group and department
  • Door control Control through external access control module
  • Sensors and REX Button 1 REX button and 1 open door sensor
  • Relay Output 1 internal relay in the access control rated 220VAC / 5A
  • Wiegand Input 1 native port
  • Wiegand output 1 native port

Communication

  • Ethernet 1 10/100Mbps Ethernet port
  • USB 1 USB 2.0 Host port
  • RS-485 1 RS-485 port for communication between the external access control module and terminal
  • GPRS GPRS connection module (optional)
  • Wi-Fi Wi-Fi connection module (opcional)

Modes of Identification

  • Proximity Reader MIFARE™ or 125 kHz ASK (depending on model)
  • Password Numeric password

User Interface

  • LCD TouchscreenLCD TFT color display with 1.77” (128x160) resistive touch screen
  • Embedded Web SoftwareComplete access control management from your browser Embedded Access Management Software

General Characteristics

  • Terminal Dimensions 57,3mm x 45,4mm x 129,4mm (W x D x H)
  • External Access Control Module Dimensions 52mm x 52mm x 22mm (W x D x H)
  • Device Weight 110g
  • External Access Control Module Weight 35g
  • Power Supply External 12V source (not included)
  • Power Consumption 1,92W (160mA) nominal

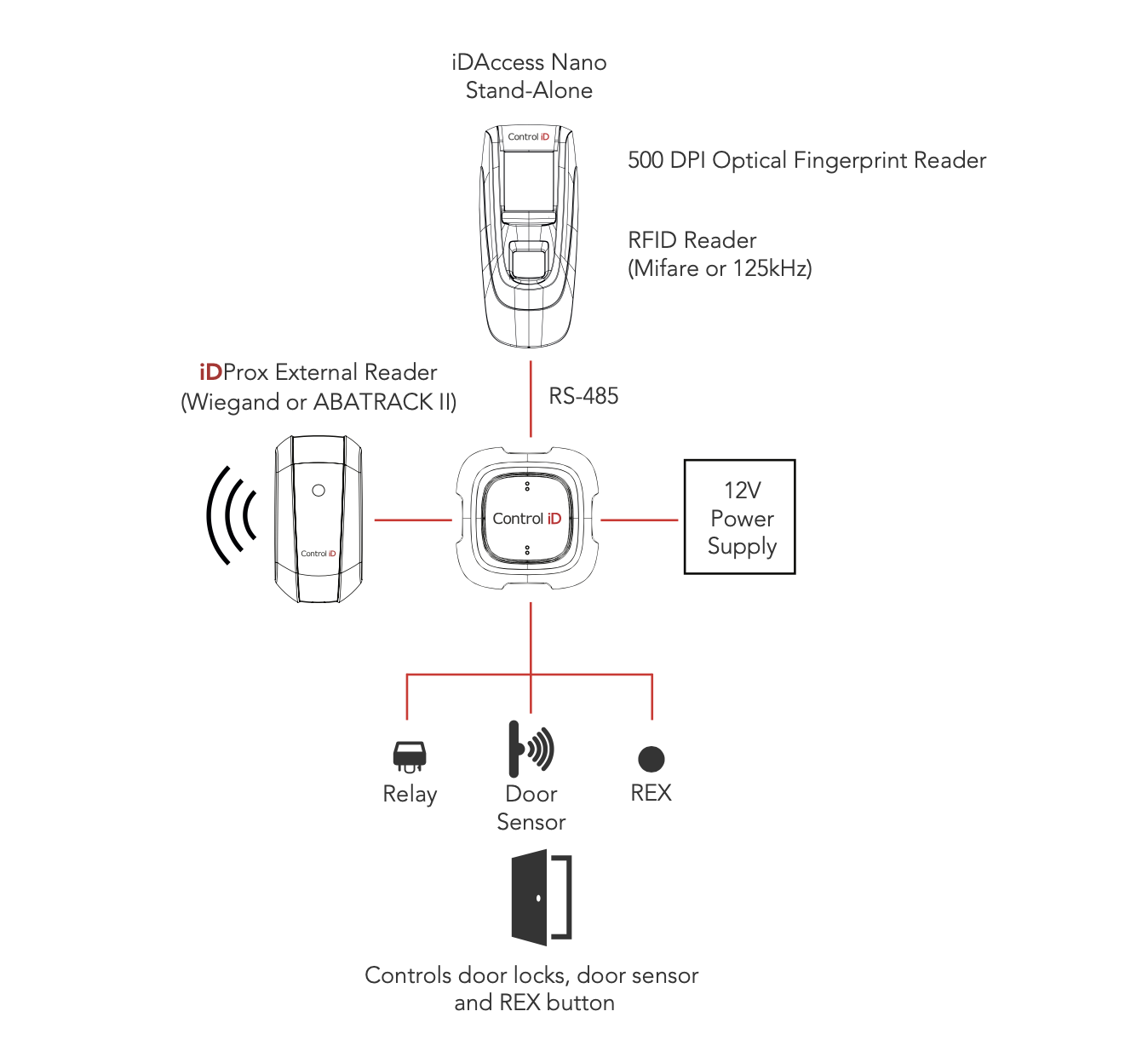

Interconnection diagram

iDAccess Nano Prox Installation Diagram
