Power iDFace Max

The iDFace Max equipment has a power management feature, in which it is possible to configure the power use of certain peripherals for different uses.

This feature can be found in:

• GUI: MENU -> General Settings -> General Settings -> System -> Power Settings

• Web: Settings -> Power Settings

Modes

The modes adjust the consumption of peripherals according to the equipment's power connection:

Standard (Source or POE)

Standard use of the equipment in POE mode or with the power source provided with the equipemnt

Peripheral	Value
Display Brightness	6/10
Speaker Volume	6/10
infrared LED intensity	10/10
White LED intensity	10/10

External Source 2A

Use of the equipment with an external source of 2A

Peripheral	Value
Display Brightness	6/10
Speaker Volume	10/10
infrared LED intensity	10/10
White LED intensity	10/10

POE + lock

Use of the equipment powered by POE and activating a lock

Peripheral	Value
Display Brightness	4/10
Speaker Volume	6/10
infrared LED intensity	10/10
White LED intensity	10/10

Custom

Fine adjustment of the equipment's energy use with different peripherals

Peripheral	Value
Display Brightness	3-10/10
Speaker Volume	5-10/10
infrared LED intensity	5-10/10
White LED intensity	5-10/10

Peripherals

Estimated contribution of each peripheral to final consumption:

Peripheral	Consumtion
Display birghtness	22%
Speaker volume	23%
Infrared LED intensity	8%
White LED intensity	4%
Rest of equipment (non-adjustable)	43%

Use

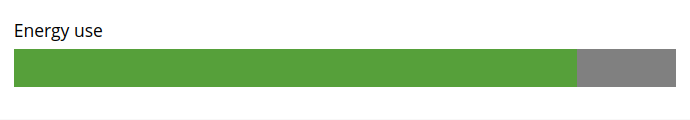

The visual representation below indicates the estimated distribution of consumption:

• The green bar indicates how much the equipment consumes from the power source.
• The grey bar indicates how much remaining power from the source is available to the lock.
